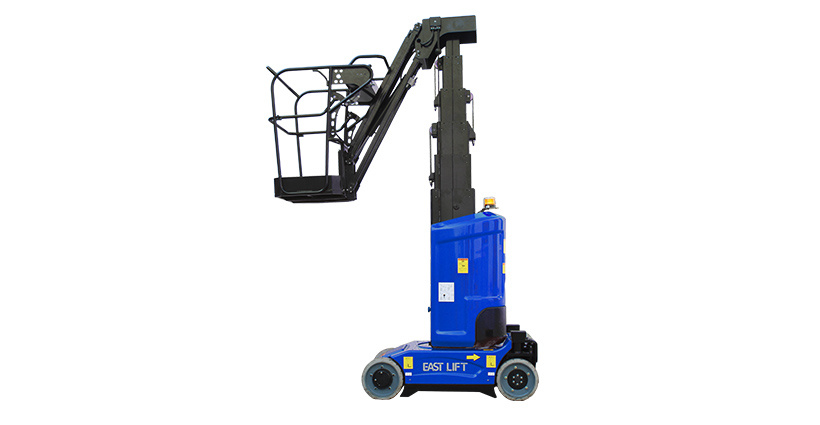

Mast Lift With Jib
Product Description
EAST LIFT's vertical telescopic mast aerial work platform with jib has a compact design that allows it to enter various space-restricted sites, and its turning radius 0.23 meters means that it can turn freely even in narrow aisles. Its high maneuverability, high sensitivity and zero tail swing make it capable of a variety of tasks, so it is more widely used in aerial work, greatly improving work productivity.
|
MODEL |
AMWP11.2-8100 |
|
Max.Working Height |
11.2m |
|
Max.Platform Height |
9.2m |
|
Max.Horizontal Reach |
3m |
|
Up and Over Height |
7.89m |
|
Overall Length |
2.53m |
|
Overall Width |
1.0m |
|
Overall Height (stowed) |
1.99m |
|
Platform Dimension |
0.62*0.87m |
|
Wheelbase |
1.22m |
|
Loading capacity |
200kg |
|
Turning Radius(Inside/Outside) |
0.23/1.65m |
|
Turret Rotation |
345° |
|
Jib Movement |
130° |
|
Max.Working Slope |
X-2.5°,Y-2.5° |
|
Weight |
2950kg |
