Single Mast Lift

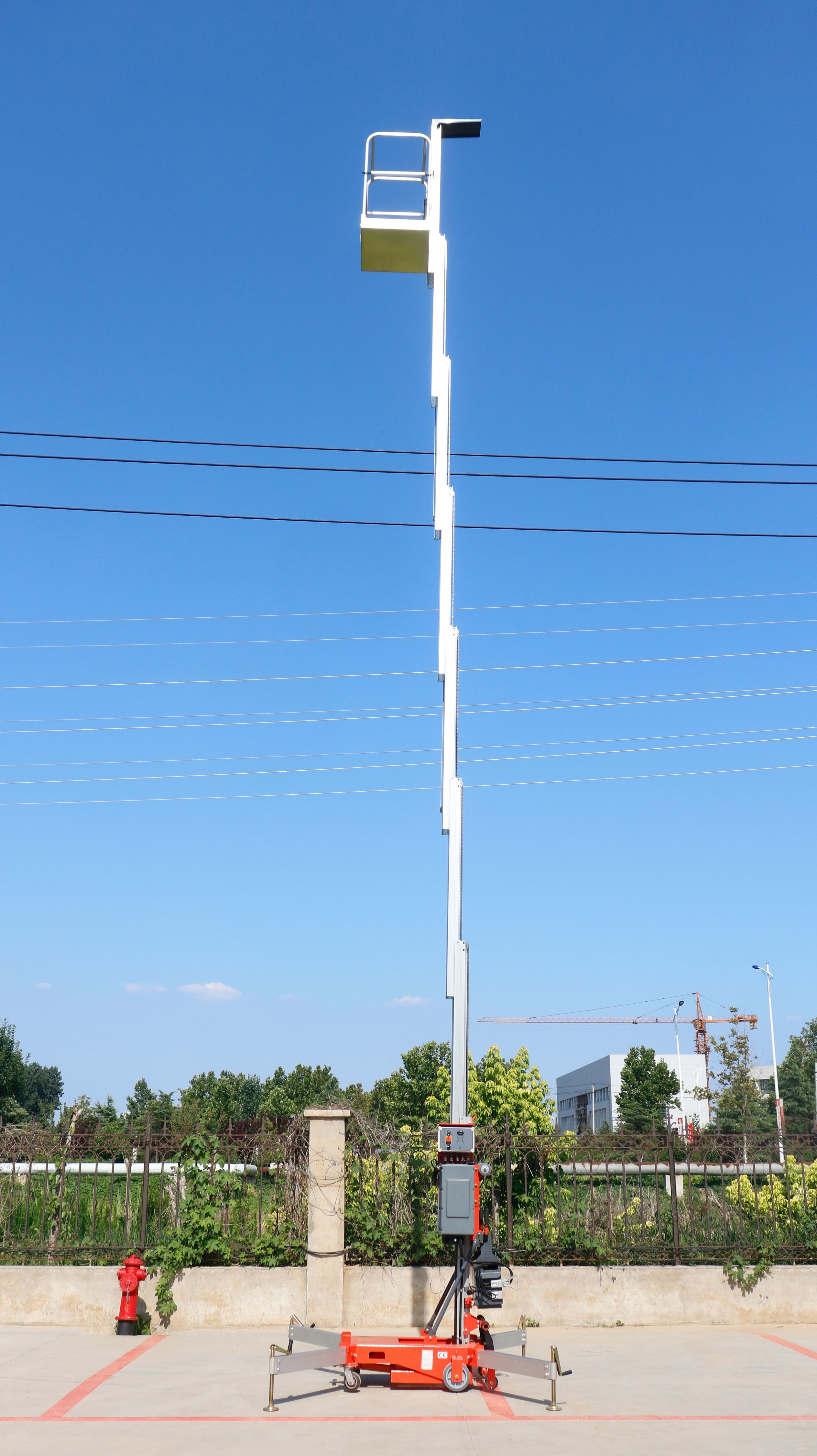

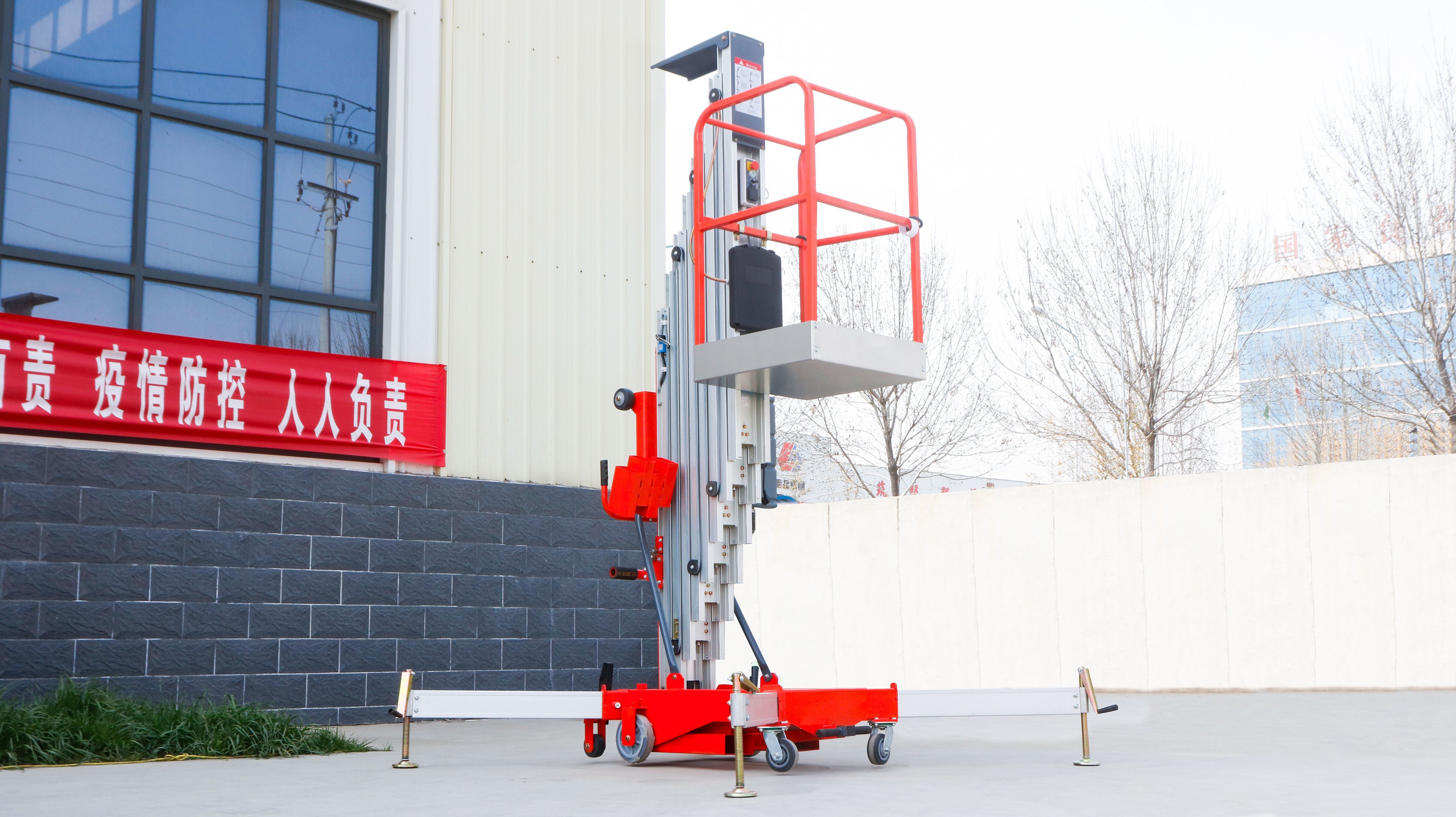

The EAST LIFT personal lift is compact and lightweight, making it ideal for increasing productivity in the workplace. This manned lift is maneuverable and suitable for one-person operation. Thanks to its compact design, it fits easily into elevators and maneuvers smoothly through standard doorways and narrow passages. One-man lifts are ideal for aircraft installation and maintenance in tight spaces.

Inquiry Now

Product Description

Describe

The EAST LIFT personal lift is compact and lightweight, making it ideal for increasing productivity in the workplace. This manned lift is maneuverable and suitable for one-person operation.
Thanks to its compact design, it fits easily into elevators and maneuvers smoothly through standard doorways and narrow passages.
One-man lifts are ideal for aircraft installation and maintenance in tight spaces.

Product Model

MODEL	PLATFORM HEIGHT	LOAD	PLATFORM SIZE	WEIGHT(AC)	WEIGHT(DC)	DIMENSIONS
XSAL0.1-5	4.7 m	150 kg	670*660 mm	300 kg	355 kg	1,2407401,990 mm
XSAL0.1-6	6.2 m	150 kg	670*660 mm	320 kg	355 kg	1,2407401,990 mm
XSAL0.1-8	7.8 m	150 kg	670*660 mm	345 kg	380 kg	1,3607401,990 mm
XSAL0.1-9	9.2 m	150 kg	670*660 mm	365 kg	400 kg	1,4007401,990 mm
XSAL0.1-10	10.4 m	136 kg	670*660 mm	385 kg	420 kg	1,4207401,990 mm
XSAL0.1-12	12 m	120 kg	670*660 mm	460 kg	495 kg	1,4508102,680 mm

Details

1.PLATFORM CAGE：Aluminum alloy material makes the overall weight lighter, more convenient to operate, and increases overall reliability.

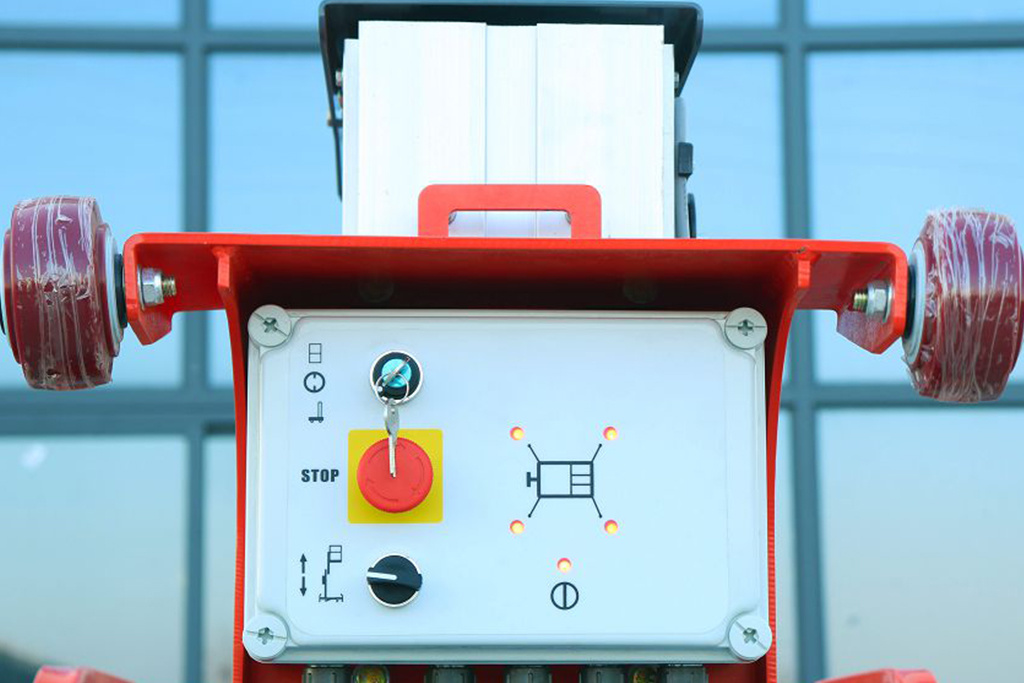

2.OUTRIGGER INTERLOCK：All four leas must be properh inserted into the socket and locked, and the four indicators on the control panel will all light uo.and the machine can be up and doyyn. lt is ferbidden for workers to operate in violation of the regulationsand use the machine without inserting the legs Guarantee workers safety.

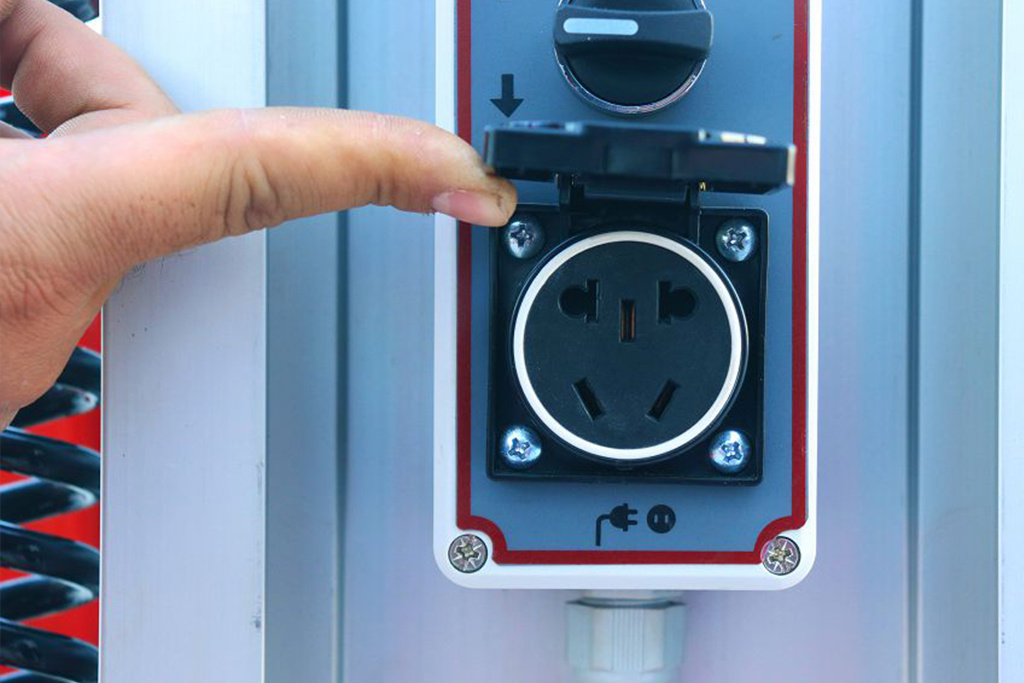

3.AC SOCKET：AC socket to the platform to meet power reguirement.Convenient for the operation of workers' electrical equipment.

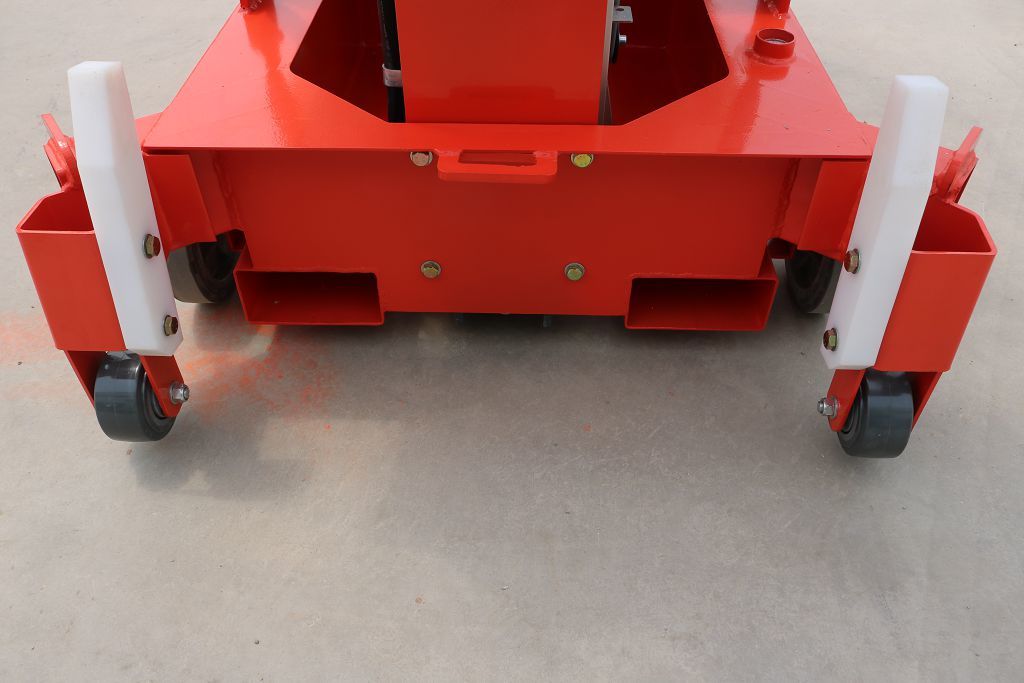

4.AUXILIARY MOBILE WHEELS ：There are 2 small wheels at the rear of the bottom lift (slightly high position behind the big wheell, with the center big wheel as the center of gravity support.When encountering a smal slope, tilt the lift slightly and move freely.

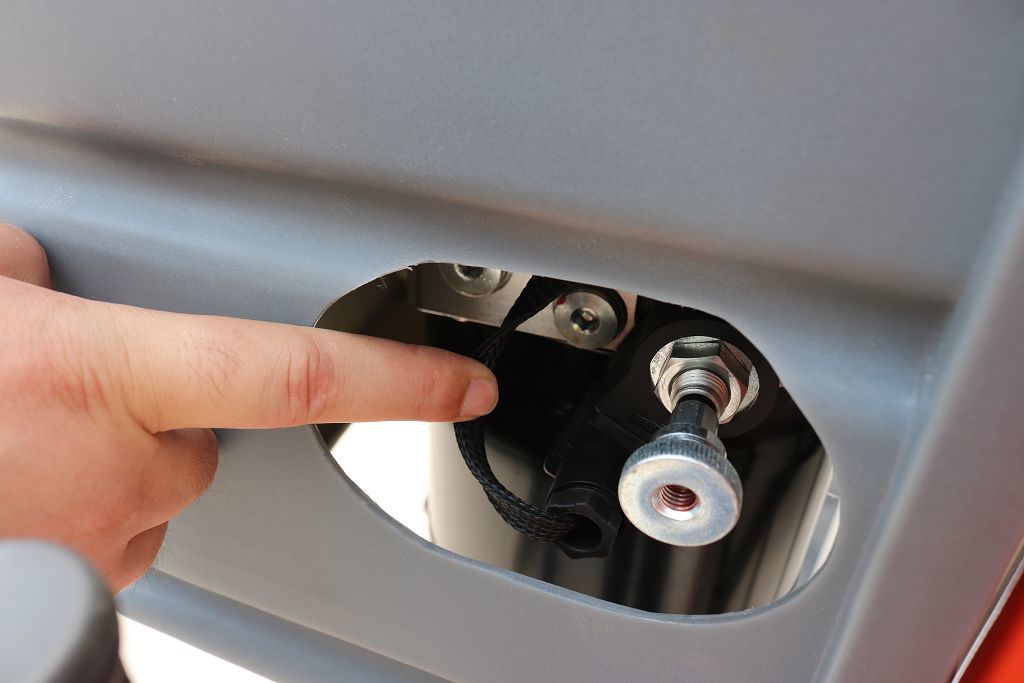

5.EMERGENCY LOWERING SYSTEM：The platform can be lowered by manual down button in case of power failure.
6.LEGS WITH RUBBER PADS：Prevent ground scratches,Stronger adsorption to ensure the stability of the lift.

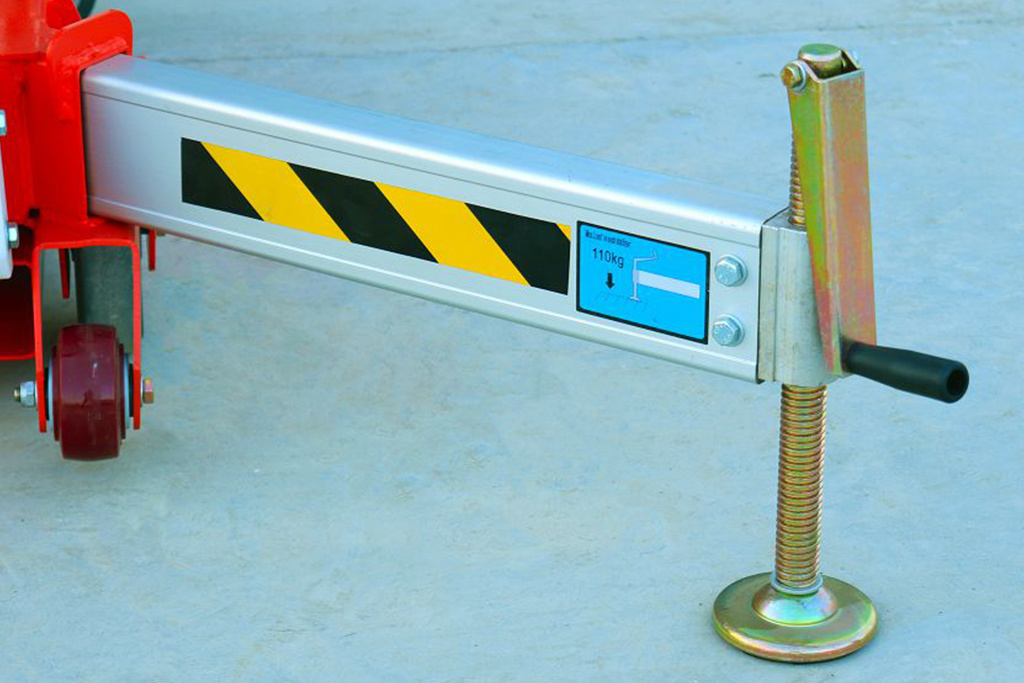

7.SUPPORT LEG：Adjustment support leg,easier to adjust the lift to balance.

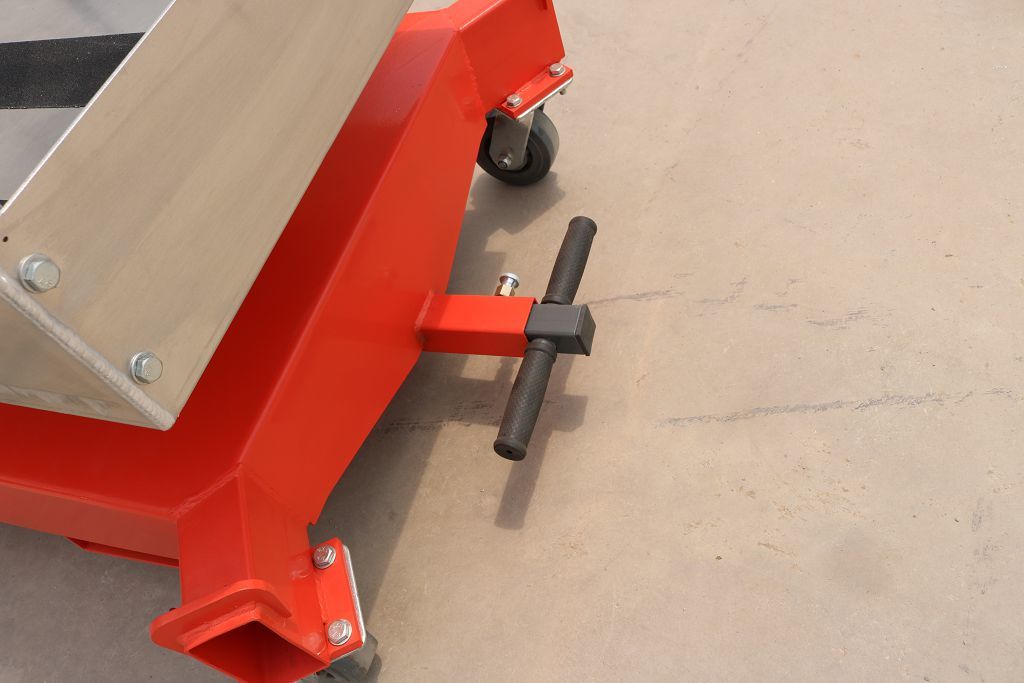

8.INSERT TYPE LOADING HANDLE：Save storage space and make loading more convenient.
