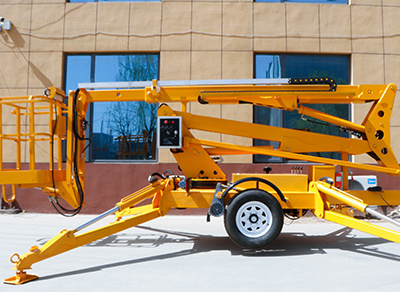

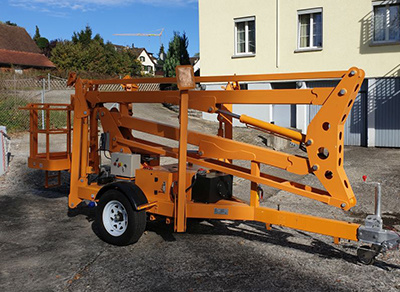

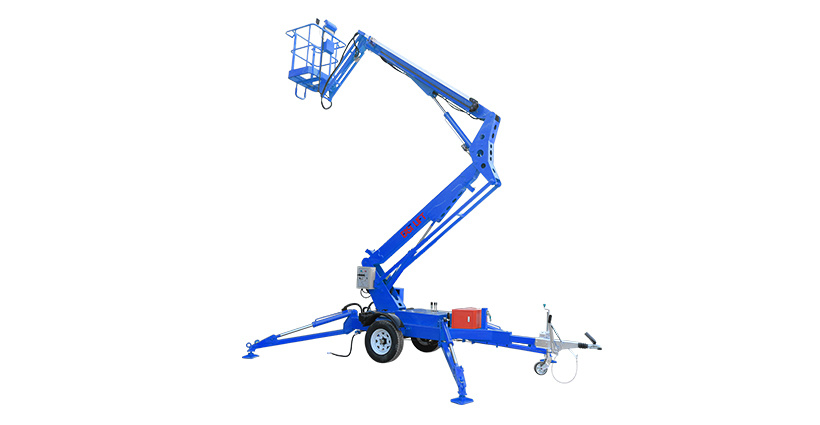

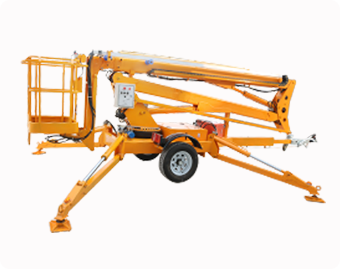

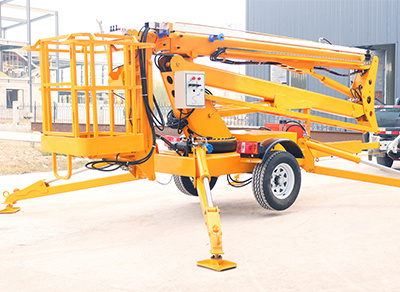

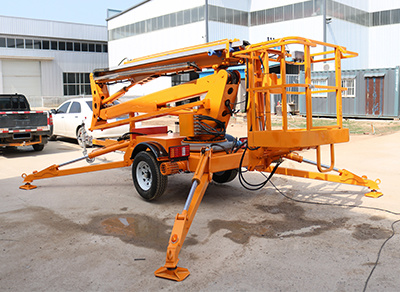

Trailer Boom Lift

Trailer Boom Lift is specifically engineered for those tricky, high-up, hard-to-squeeze-into jobs. They’re space efficient, both when in use and folded up for storage, as it’s able to move around in narrow spaces easily, and be folded up for compact storage.

Inquiry Now

Product Description

Describe

Trailer Boom Lift is specifically engineered for those tricky, high-up, hard-to-squeeze-into jobs.
They’re space efficient, both when in use and folded up for storage, as it’s able to move around in narrow spaces easily, and be folded up for compact storage.

Product Model

Model	Platform Size	Platform Height	Load	Operating Radius	Dimension	Weight
XST0.2-10	900*700 mm	10m	200kg	5.5m	52007002100mm	1850kg
XST0.2-12	900*700 mm	12m	200kg	6.5m	620017002100 mm	1950kg
XST0.2-12B	900*700mm	12m	200kg	7.8m	47007002100mm	2100kg
XST0.2-14	900*700 mm	14m	200kg	8.5m	555016802100 mm	2400kg
XST0.2-16	900*700mm	16m	200kg	10.5m	570016802200mm	2500kg
XST0.2-18	900*700 mm	18m	200kg	11m	650078002250 mm	3800kg
XST0.2-20	900*700mm	20m	200kg	1lm	58009002250mm	4200kg

Details

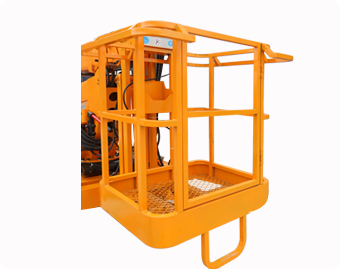

1.WORKING CAGE：Strong basket to insure safety.Hands prevent folder, protect user's hands
from collision with obstacles. Metallic paint on appearance is featured by anti-ultraviolet radiation, corrosion resistance and brightness.

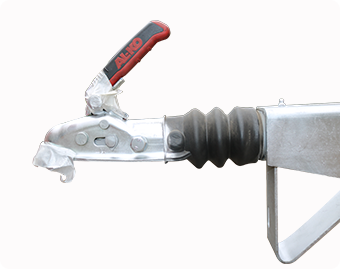

2.TRACTION BAR：KNOTT International standard traction bar for automobiles, Germany brand.

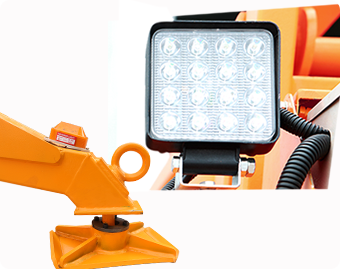

3.WARNING LIGHTS：Warning lights on every outrigger, to insure safety when working.
4.TELESCOPIC BOOM：Telescopic boom from 12 m platform height.

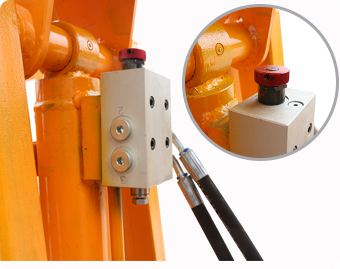

5.Dual function oil cylinder：Manual emergency descent.Prevent oil pipe rupture and leakage.
6.STRONG STRUCTURE：Q345 steel, it’s strong and stable.

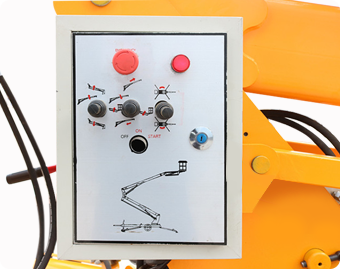

7.RAINPROOF ELECTRIC BOX：Smart touch screen operation panel, you can switch mode power at will, more simple and clear.
8.360 DEGREE ROTATION PLATE：Boom rotation depends on it, running stable.

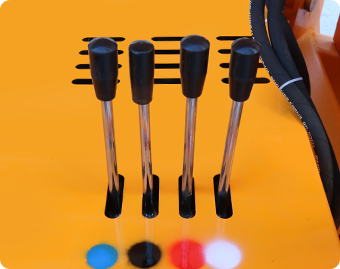

9.OUTRIGGERS OPERATE：Easy to operate outriggers with marked sign.
10.ELECTRIC LEVEA DETECTOR：Intelligent level meter, automatically detects that the device cannot be raised over 3 degrees, fully protecting the safety of the staff.

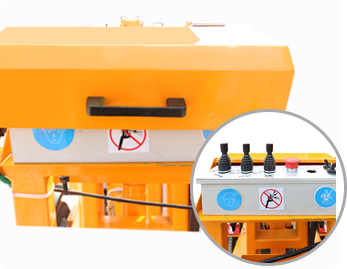

11.CONTROLLER ON THE PLATFORM：The platform controller is equipped with a waterproof and dustproof protective cover.
12.CHARGING SOCKET：Taillights with brake light and turn light.Pneumatic Rubber tyres, contacted by electric torsion shaft with great shock absorption function.

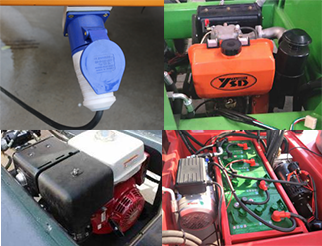

OPTIONAL POWER SUPPLY：Alternate current (AC) power optional,Battery (DC) power optional,Diesel engine optional,Gasoline engine optional,Dual power supply optional.
