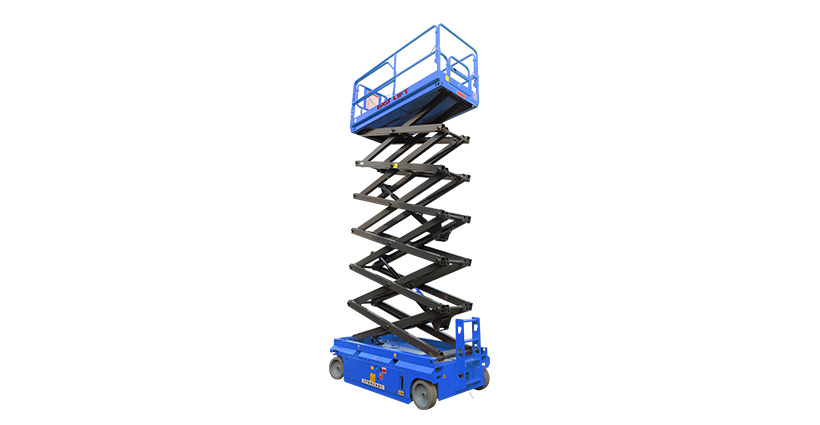

Electric Scissor Lift

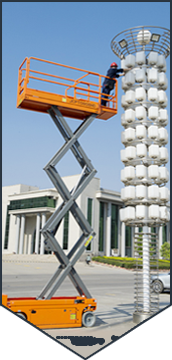

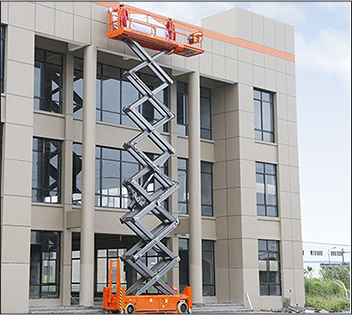

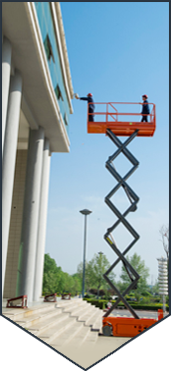

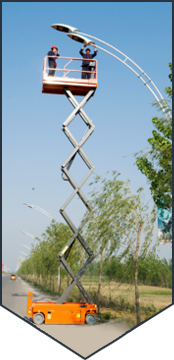

EAST GROUP ELECTRIC SCISSOR LIFT is commonly used in construction, maintenance, warehouse operations, and other industries where vertical access is required. Load capacity ranges from 230kg to 500kg and platform height ranges from 6m to 14m.

Inquiry Now

Product Description

Describe

Powered by rechargeable batteries, it is suitable for indoor use where emissions and noise need to be minimized. Besides, it is equipped with user-friendly controls and safety features such as guardrails, emergency stop buttons, warning light, etc, to boost productivity and operator confidence.

Product Model

Models	XSES-06N	XSES-06W	XSES-08N	XSES-08W	XSES-10W	XSES-12W	XSES-14W
Max. Working Height	7.8m	7.8m	9.8m	9.8m	11.8m	13.8m	15.8m
Max. Platform Height	5.8m	5.8m	7.8m	7.8m	9.8m	11.8m	13.8m
Platform Size	1.67*0.74m	2.3*1.15m	2.3*0.81m	2.3*1.15m	2.3*1.15m	2.3*1.15m	2.64*1.13m
Length-stowed	1.9m	2.45m	2.45m	2.475m	2.475m	2.475m	2.87m
Width-stowed	0.76m	1.18m	0.85m	1.18m	1.18m	1.18m	1.37m
Height-stowed	2.18m	2.24m	2.36m	2.36m	2.48m	2.60m	2.87m
Length/Load of Extended Platform	0.9m/113kg	0.9m/113kg	0.9m/113kg	0.9m/113kg	0.9m/113kg	0.9m/113kg	0.9m/113kg
Weight	1500kg	2000kg	2150kg	2100kg	2750kg	2950kg	3900kg
Max. Lift capacity	230kg	320kg	230kg	320kg	320kg	320kg	230kg
Drive speed-stowed	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h	3.5km/h
Drive speed-raised	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Battery	24V/200Ah	24V/200Ah	24V/200Ah	24V/200Ah	24V/200Ah	24V/200Ah	24V/270Ah
Charger	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A	24V/30A

Details

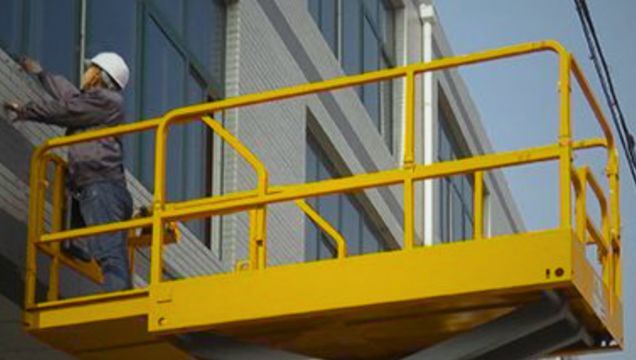

1.Extendable Platform：Extended mesa guardrail with automatic locking doors which could pass through in small space, outspread platform to enlarge working range, more convenient for workers.

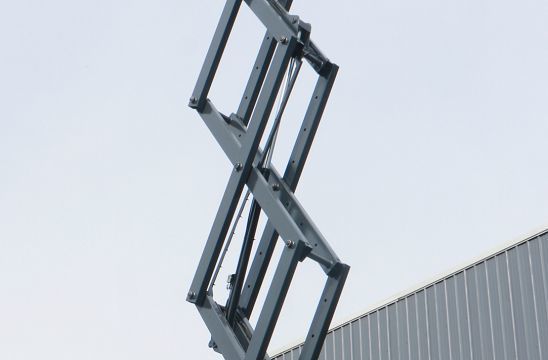

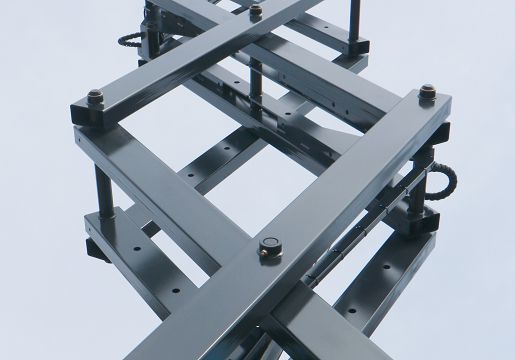

2.Scissor Structure：High Strength Scissors, produced by Q345B Rectangle Tubes, which make the lift more Stable.

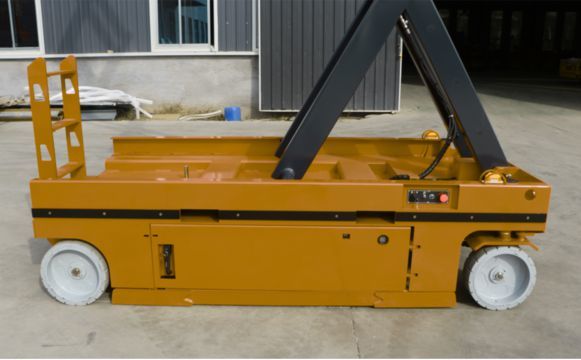

3.Chassis：Chassis welded by steel plate, more durable, ground control system can control the lifting of the machine.
4.Hydraulic Cylinder：IDA hydraulic cylinder and Sant balance valve are controlled by the Danfoss hydraulic drive system to provide better power and security for the machine.

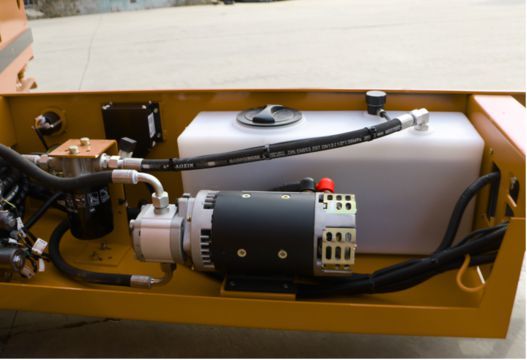

5.Hydraulic System：Open hydraulic system box allow easy access to engine components for convenient service.
Key lock: Lock the open hydraulic system box in case of children or strangers.

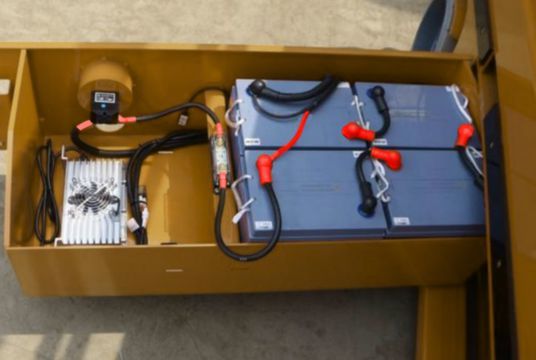

6.Electrical System：The four maintenance-free LA batteries have strong power and are more durable.
High quality chargers guarantee charging speed and safety.

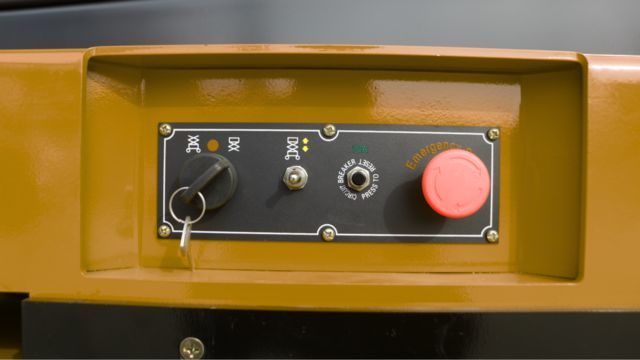

7.Ground Control：（1）.Emergency stop
（2）.key switch which could choose ground control or platform control
（3）.Button for easy operation up and down.

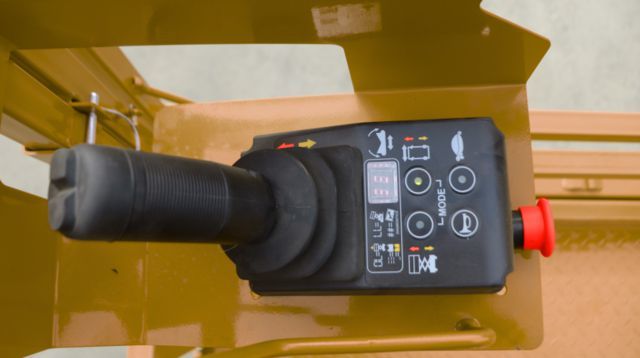

8.Platform Control：Platform control handle. Each control button has the instruction mark, the user can understand how it works and easy to operate to up down or turn.

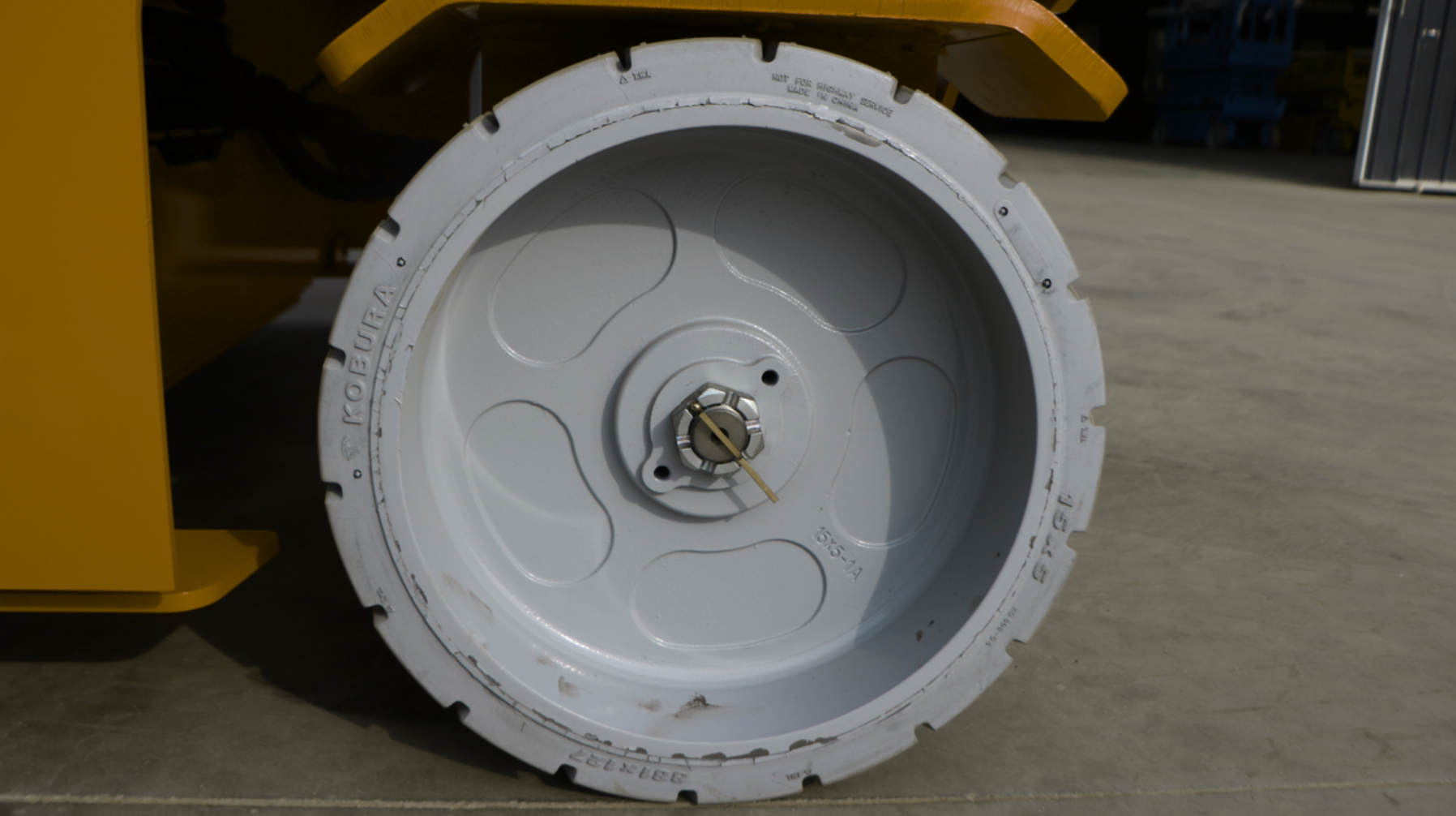

9.Non-marking PU Wheels：Non-marking PU Driving Wheels. Shock absorbers, no scratches on the ground, the service life is longer than the general pneumatic tire.

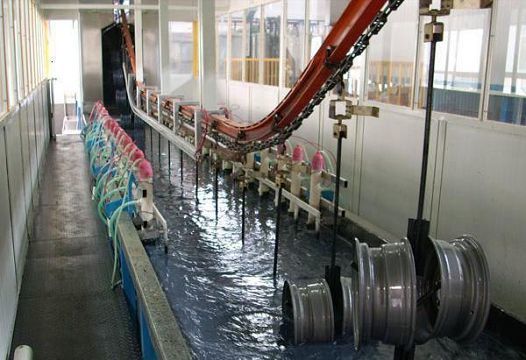

10.Electrophoretic Paint：Electrophoretic paint film has the advantages of fullness, uniformity, flatness and smooth coating. The hardness, adhesion, corrosion resistance, impact performance and permeability of electrophoretic paint film are significantly better than other coating processes.

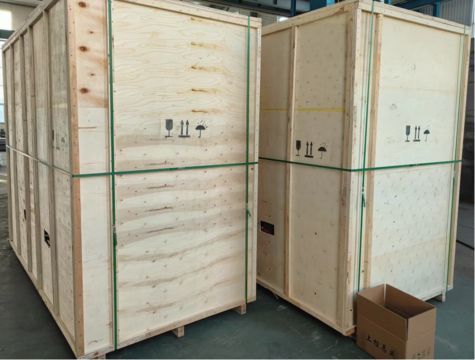

11.Plywood Case Package：Package by plywood case to protect goods from being destroyed for LCL shipping.
