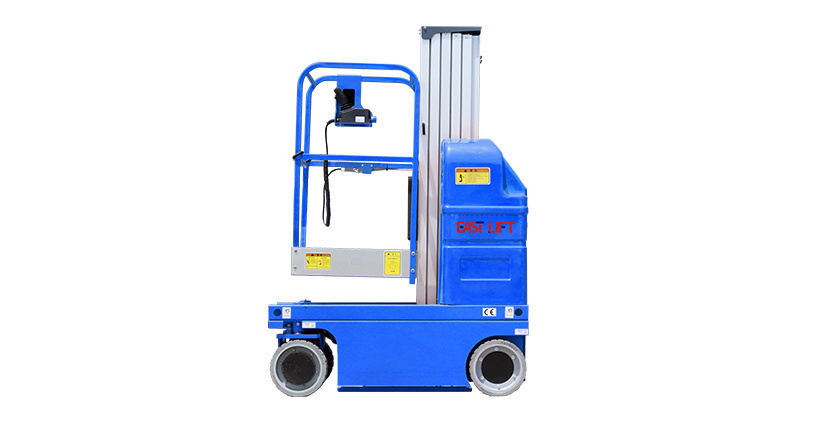

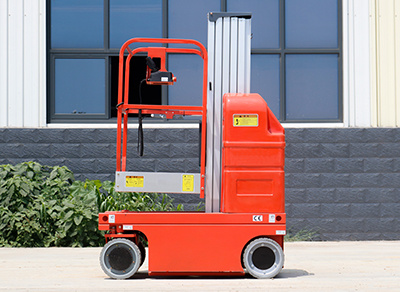

Self-Propelled Mast Lift

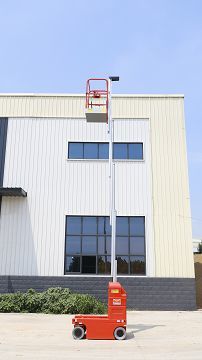

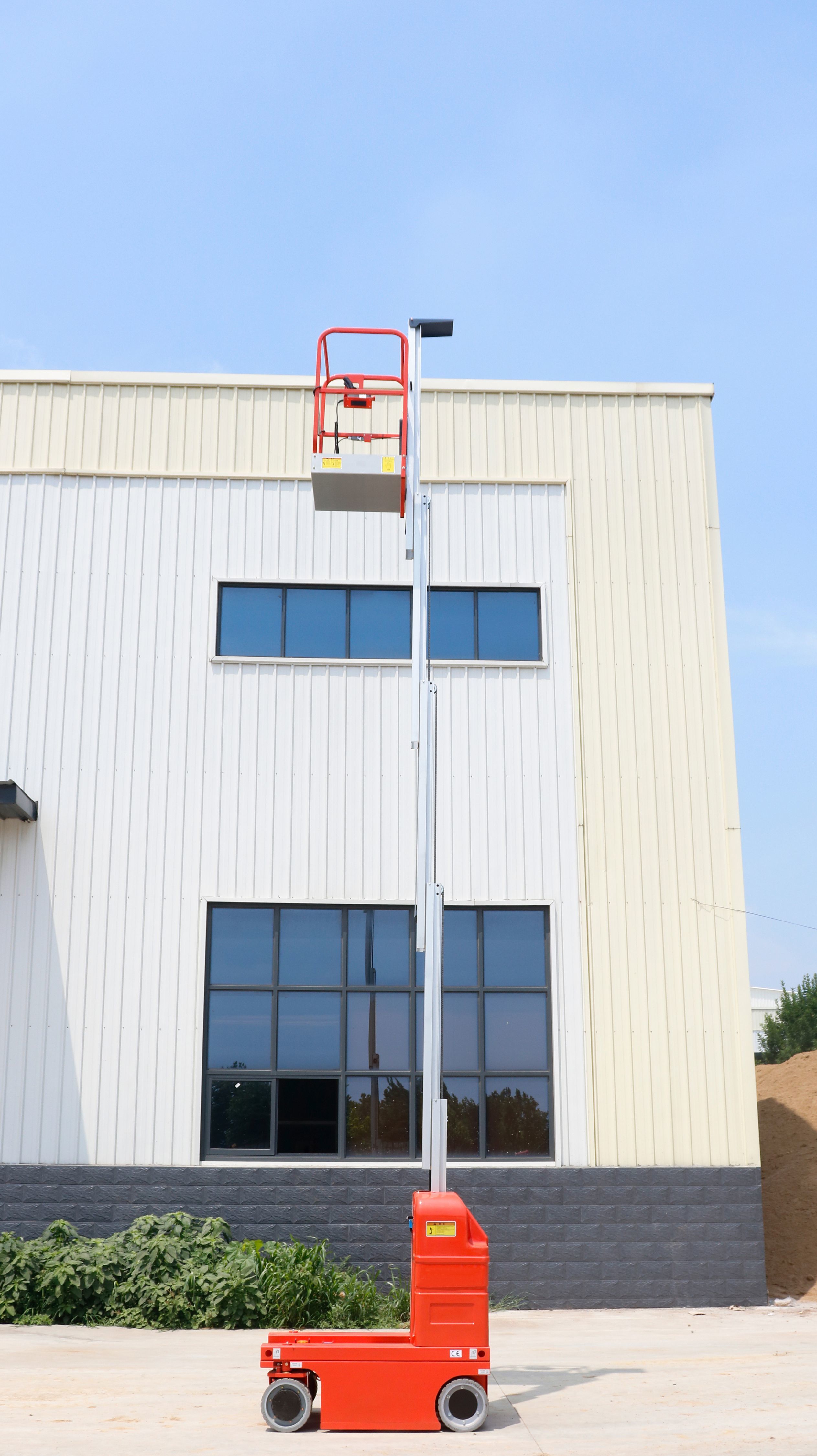

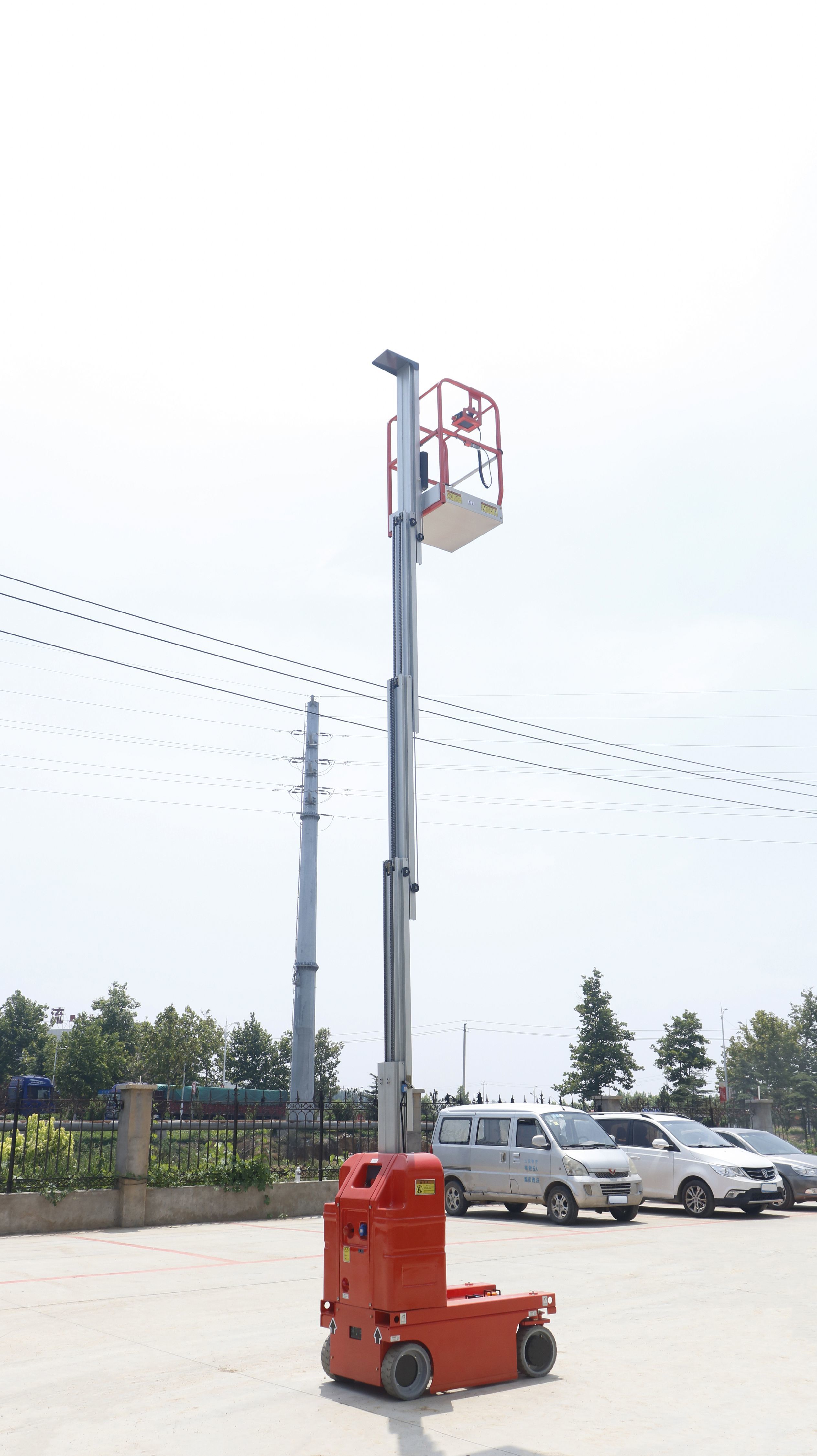

Self-propelled vertical mast lift powered by battery, with the operator driving it by the full proportional hydraulic control system like driven a car. Featured with Aluminium alloy, light, compact size, good stability, the self-propelled vertical mast lift can be driven forward, backward turning. More suitable for work in confined space.

Inquiry Now

Product Description

Describe

Product Model

MODEL	PLATFORM HEIGHT	LOAD	PLATFORM SIZE	BATTERY	WEIGHT	TRAVEL SPEED	DIMENSIONS
XSAL0.1-6S	6m	125 kg	780*700 mm	212V105 Ah	880 kg	3 km/h	13607902080 mm
XSAL0.1-7S	7.5m	125 kg	780*700 mm	212V105 Ah	910 kg	3 km/h	13607902080 mm
XSAL0.2-7S	7.5m	200 kg	1,000*700 mm	212V115 Ah	1,200 kg	3 km/h	150010002080 mm
XSAL0.2-9S	9m	200 kg	1,000*700 mm	212V115 Ah	1,450 kg	3 km/h	150010002080 mm

Details

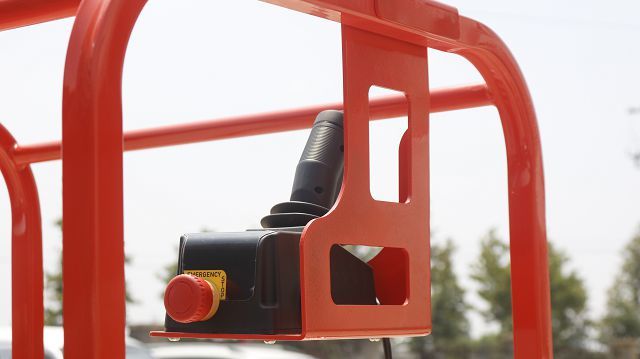

1.Proportional Control：The walking speed can be controlled.Press the handle to the end, it travels fast; press the handle gently, it travels slowly.

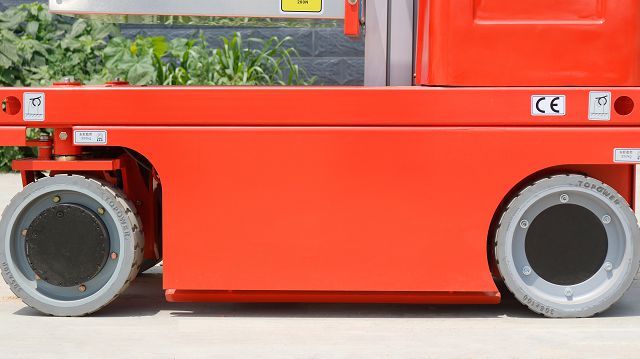

2.Automatic Pothole Protection：Avoid equipment overturning due to driving into the pit.

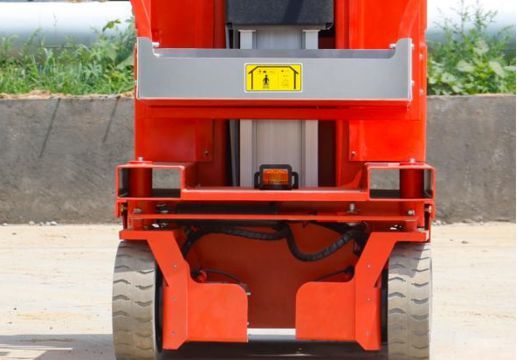

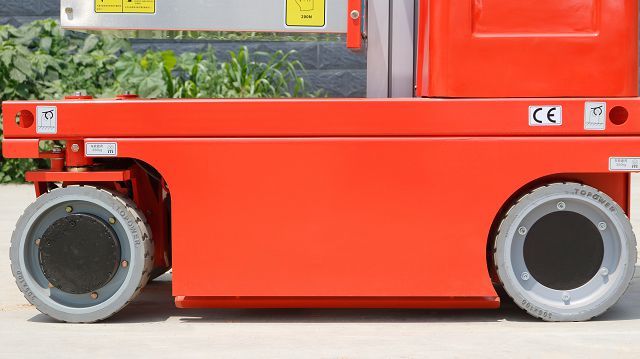

3.Non-trace Tyre：Wear resistant, no air leakage, no worry about tire pressure. And frequent maintenance can be saved in the future.
4.Emergency Stop Button：Stop the platform in case of any emergency.

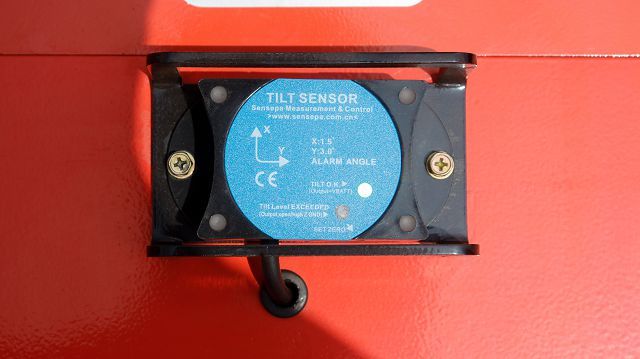

5.Level Sensor ：If the tilt angle is too large, the platform will automatically limit the lifting function.
6.Cylinder Holding Valve：The platform will not fall even when the tubing bursts.
7.Anti Pinch Function ：There is a short pause in the process of lowering to prevent the operator from being pinched.

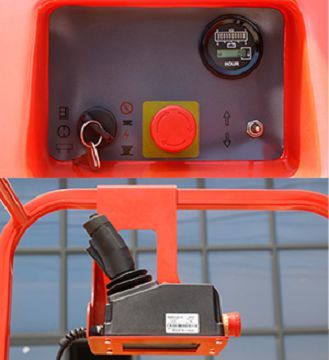

8.Dual Controller Operation：There are two controll panel, one can be controlled on ground and anothe can be controlled on platform. The first one can control the lifting, and the second can control the lifting and walking.

Application

N/A
