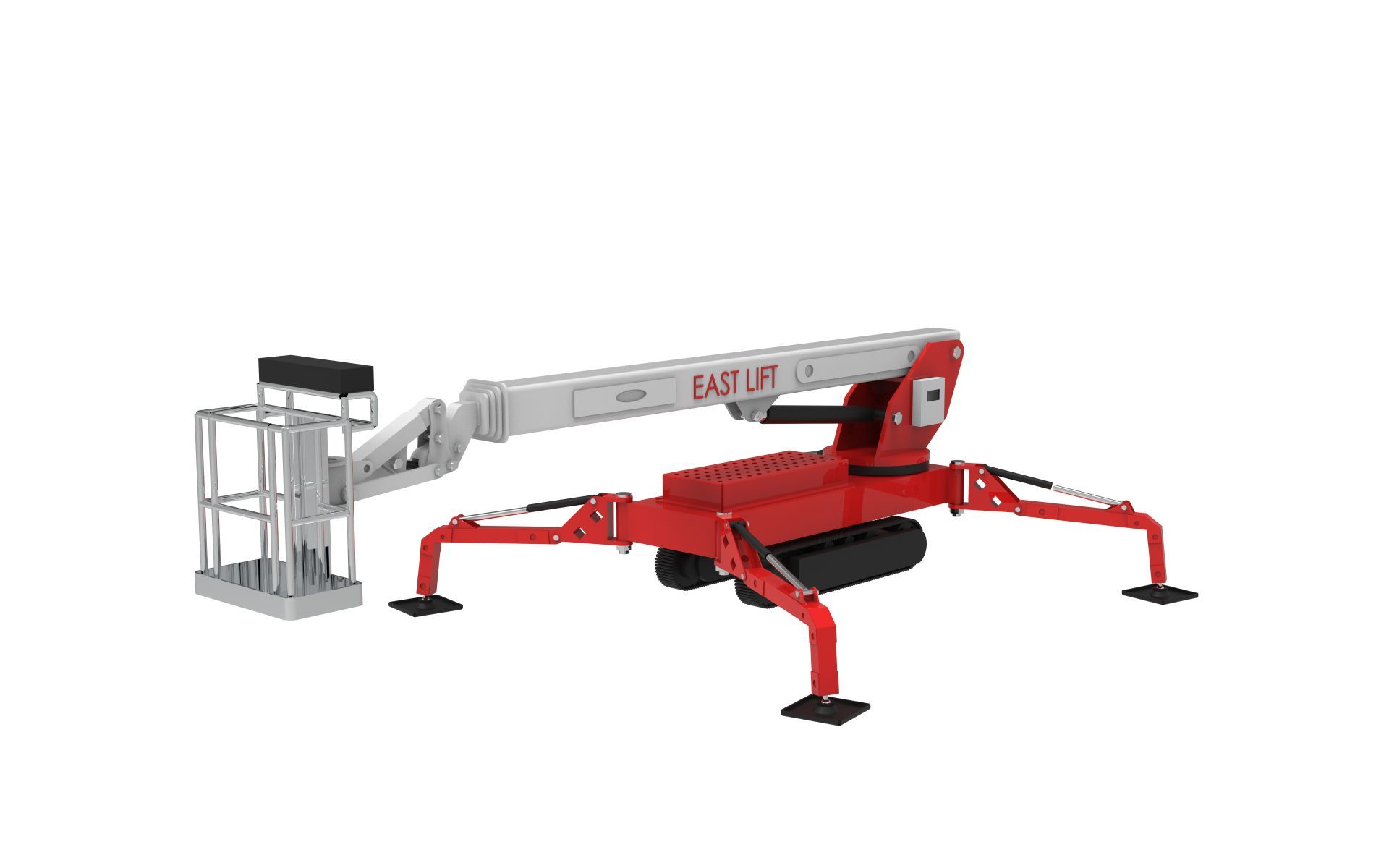

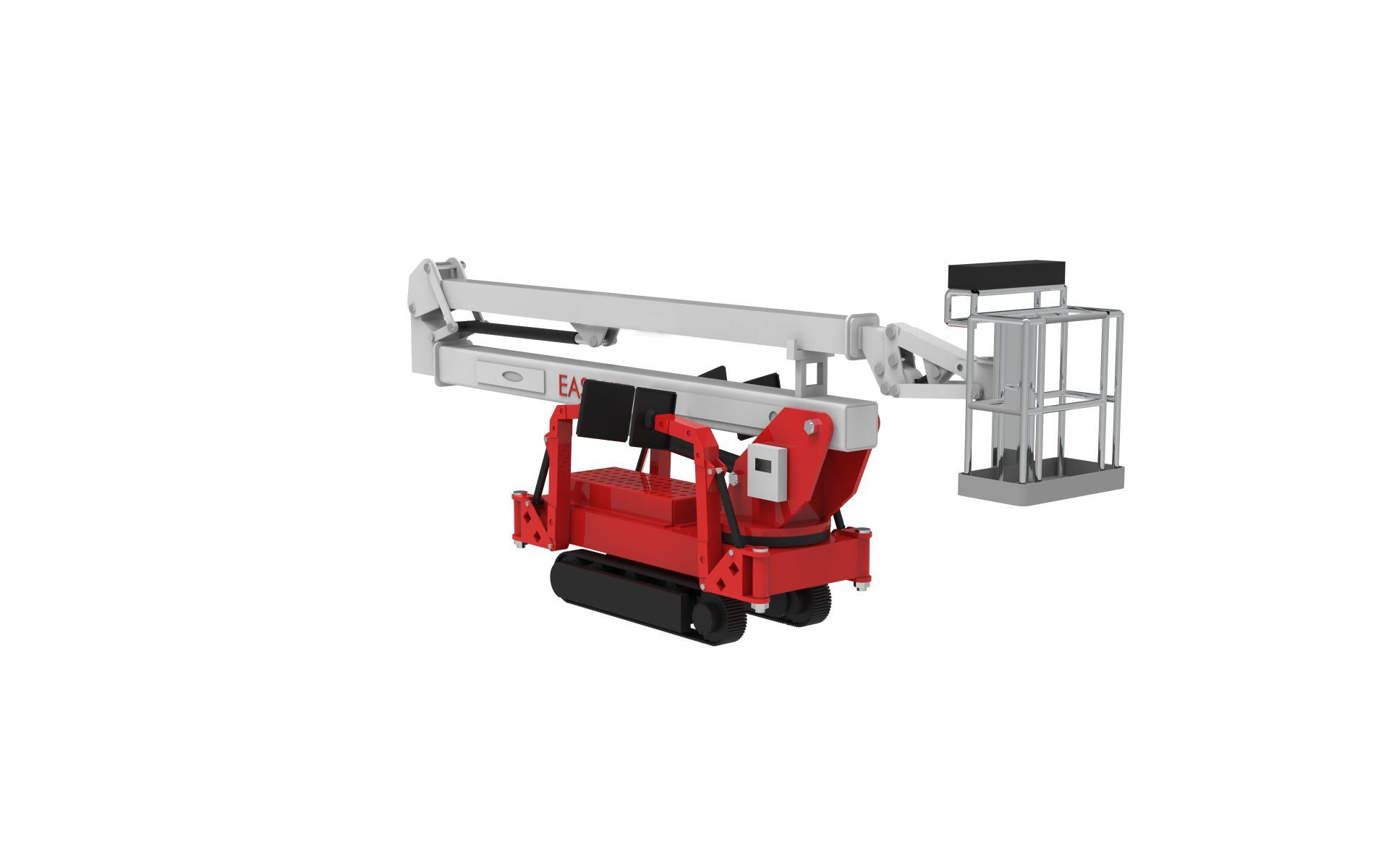

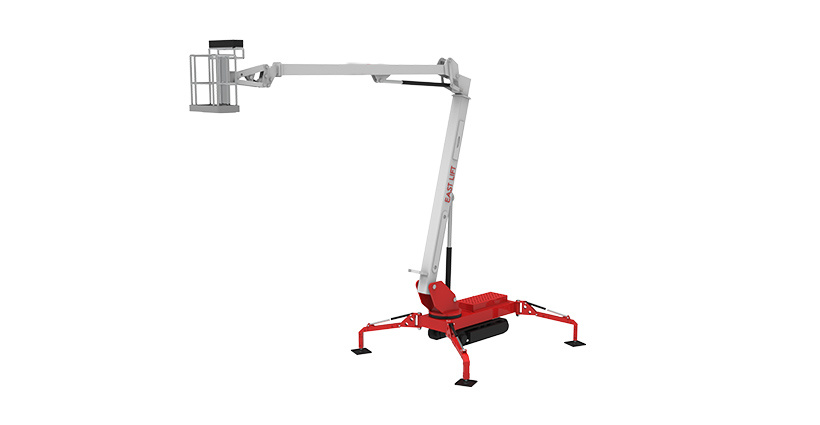

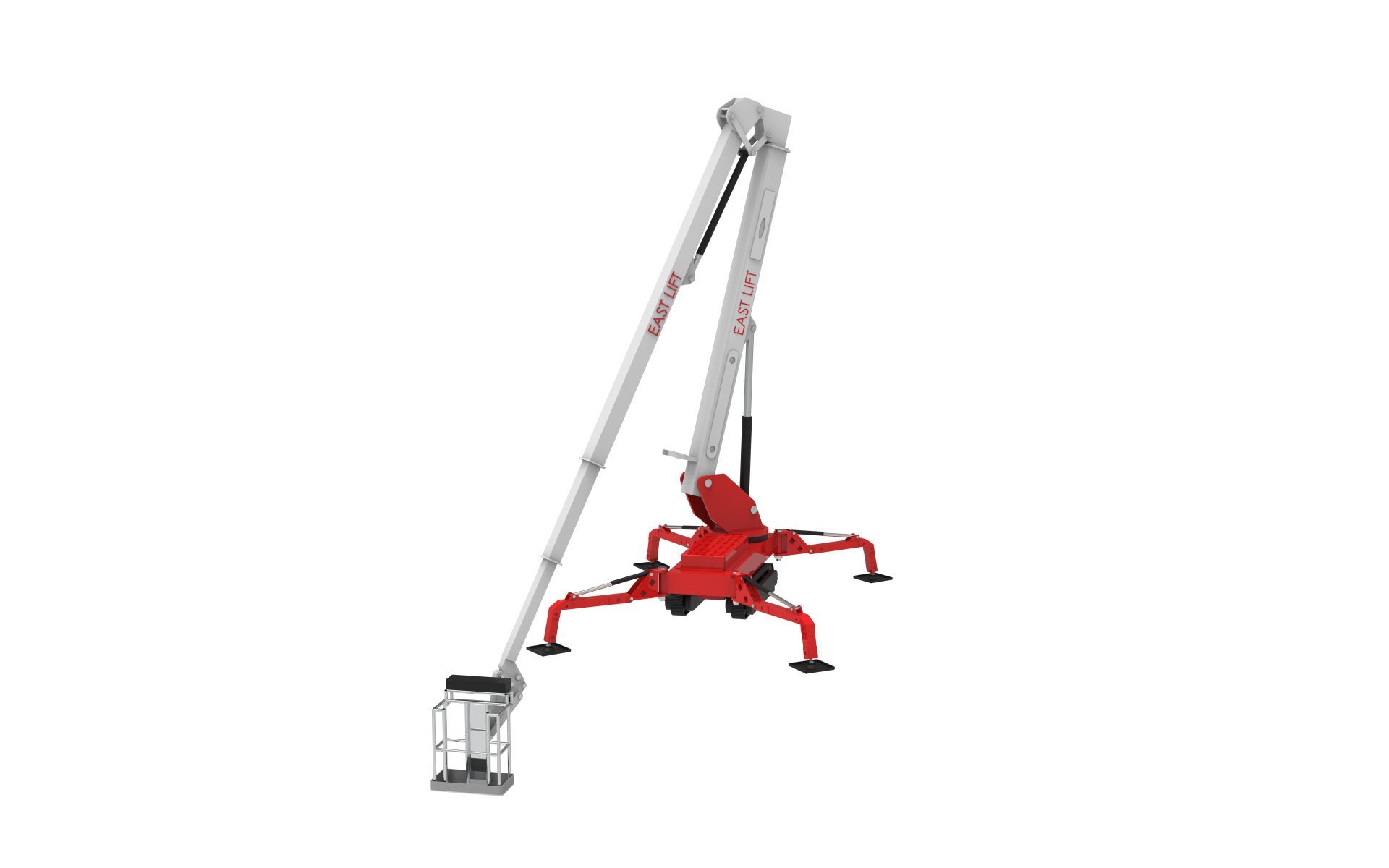

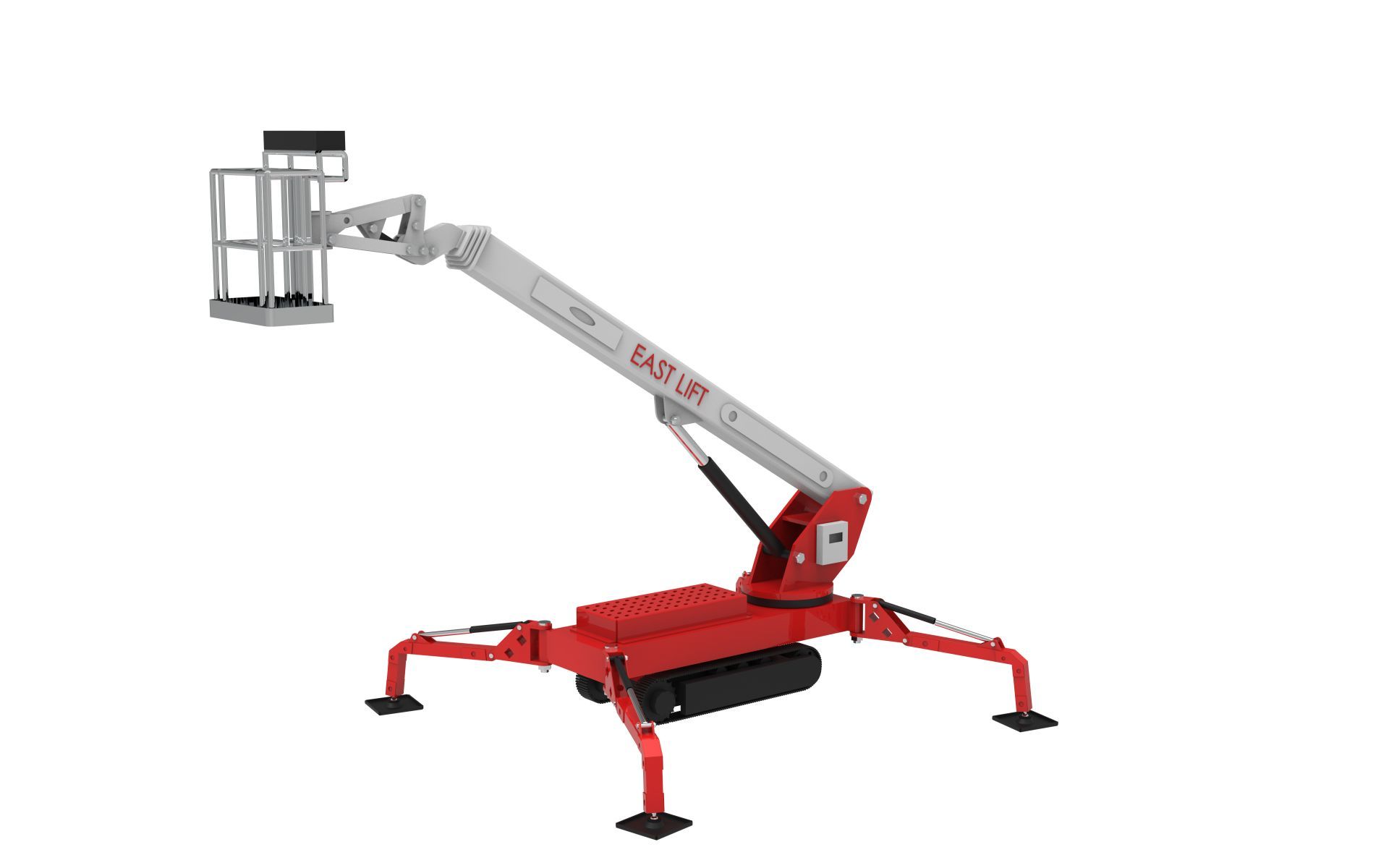

Spider Lift
Product Description
The spider lift is a new type of indoor and outdoor aerial work platform, which stands out among many aerial work equipment for its extremely compact size and high adaptability. With reaching work height 12-39m, it is convenient, efficient and the best choice for tree pruning, power maintenance, venue cleaning, building installation and construction, etc. It has a retractable track and intuitive controls, which can move in narrow spaces and hard-to-reach places, provide excellent ground grip and adapt to less ideal terrain conditions.
|
Model |
Max platform height |
Max working height |
Max horizontal reach |
Max load capacity |
Stowed length/(without platform) |
Stowed width |
Stowed height |
Weight |
Power |
|
XSSPL-10 |
10.00m |
12.00m |
8.35m |
200kg |
4.85m/2.90m |
1.86m |
1.99m |
2900kg |
DC 24V |
|
XSSPZ-11 |
11.00m |
12,75 m |
6,05 m |
230kg |
4,75 m / 4,00 m |
0,90 m |
1,99 m |
1957kg |
AC 220V + Diesel |
|
XSSPZ-13 |
13.00m |
14.70m |
7.60m |
230kg |
5.25m/4.52m |
0.90m |
1.99m |
2416kg |
AC 220V + Diesel |
|
XSSPZ-16 |
16.00m |
18.30m |
8.5m |
230kg |
5.20m/4.50m |
0.90m |
1.99m |
3577kg |
DC 220V + Diesel |
|
XSSPZ-21 |
21.00m |
23.00m |
11.20m |
230kg |
6.20m（without platform） |
0.95m |
1.97m |
4036kg |
DC 220V + Diesel |
|
XSSPL-21 |
21.00m |
23.20m |
12.5m（250kg）15.6m（80kg） |
250kg |
6.20m（without platform） |
0.99m |
1.99m |
4036m |
DC 220V + Diesel |
|
XSSPZ-25 |
25.00m |
27.00m |
14.30m |
200kg |
6.45m（without platform） |
0.95m |
1.99m |
5197kg |
DC 220V + Diesel |
|
XSSPL-28 |
28.00m |
30.00m |
16.00m |
200kg |
7.70m/7.5m |
1.58m |
1.98m |
6142kg |
AC 220V + Diesel |
|
XSSPL-33 |
33.00m |
35.00m |
16.00m |
200kg |
8.00m/7.80m |
1.58m |
1.99m |
7425kg |
AC 220V + Diesel |
|
XSSPZ-32 |
32.00m |
34.10m |
19.90m |
200kg |
7.85m/7.00m |
1.59m |
1.99m |
11083kg |
AC 400V + Diesel |
|
XSSPZ-37 |
37.00m |
38.60m |
23.30m |
200kg |
7.85m/7.00m |
1.59m |
1.99m |
11812kg |
AC 400V + Diesel |
|
