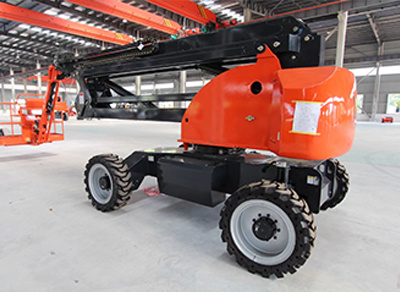

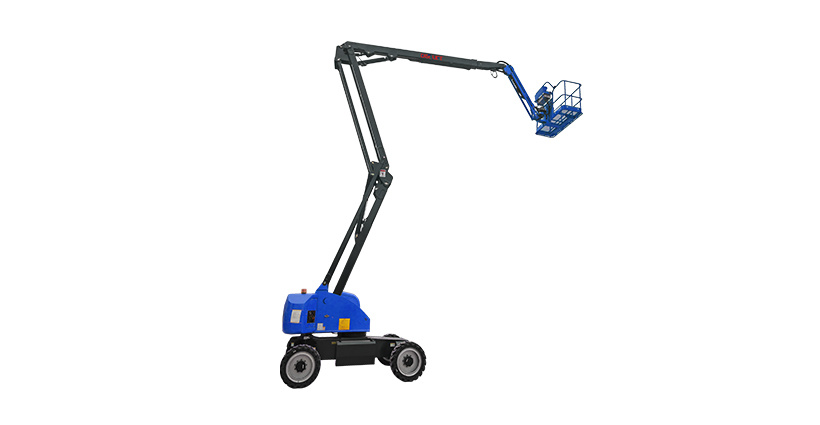

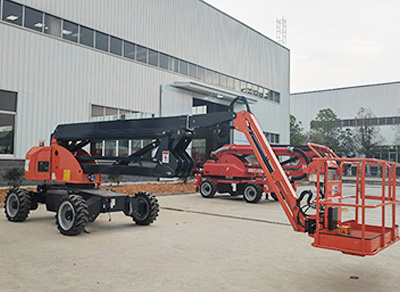

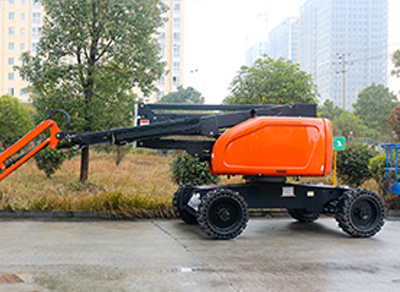

Electric Articulated Boom Lift

Power options include diesel, hybrid and electric drive models, the main feature of which is the highly flexible and convenient multi-stage folding arm. Their articulation and rotation specifically allow this type of work platform to overcome various obstacles and work at multiple points without having to reposition the base.

Inquiry Now

Product Description

Describe

Power options include diesel, hybrid and electric drive models, the main feature of which is the highly flexible and convenient multi-stage folding arm. Their articulation and rotation specifically allow this type of work platform to overcome various obstacles and work at multiple points without having to reposition the base.
Articulating boom lifts have multiple pivot points on the boom sections, allowing users to reach areas that would otherwise be difficult or inaccessible. You can easily identify an articulating boom lift by its unique shape. Articulating boom lifts can be lifted, climbed over and moved out with precise positioning for ultimate versatility in hard-to-access work areas. These aerial lifts are popular for their unique "up-and-over" ability to negotiate obstacles at high altitudes.

Product Model

MODEL	Platform height	Working height	Platform Size	Rated Load Capacity	Drive mode	Driving Speed	Grade ability	Total weight
XSAB10D	10m	12m	1.1*0.65m	200kg	422	3/0.8km/h	25%	4800kg
XSAB12D	12m	14m	1.1*0.65m	200kg	422	3/0.8km/h	25%	5500kg
XSAB14D	14.05m	16.05m	1.53*0.76m	230kg	422	5/0.8km/h	30%	6270kg
XSAB16D	15.8m	17.8m	1.53*0.76m	230kg	422	5/0.8km/h	30%	6720kg
XSAB18D	18m	20m	1.53*0.76m	230kg	422	5/0.8km/h	25%	8080kg
XSAB20D	19.9m	21.9m	1.53*0.76m	230kg	422	5/0.8km/h	25%	8200kg
XSAB12Z	12m	14m	1.1*0.67m	200kg	422	3.2/0.8km/h	30%	5300kg
XSAB16Z	16m	18m	1.83*0.76m	230kg	422	4.2/1.1km/h	45%	7877kg
XSAB20Z	20m	22m	1.83*0.76m	230kg	422	4.2/1.1km/h	45%	8800kg
XSAB24Z	24.2m	26.2m	1.83*0.76m	230kg	422	4.2/1.1km/h	45%	1630kg
XSAB25Z	25.1m	27.1m	1.83*0.76m	230kg	422	4.2/1.1km/h	45%	14400kg
XSAB30Z	30m	32m	2.44*0.91m	480/230kg	444	4.2/1.1km/h	40%	18000kg
XSAB38Z	38.1m	40.1m	2.44*0.91m	480/230kg	444	4.2/1.1km/h	40%	24500kg
XSAB45Z	45.8m	47.8m	2.44*0.91m	480/230kg	444	4.2/1.1km/h	40%	27000kg

Details

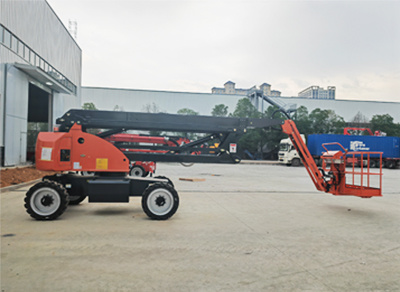

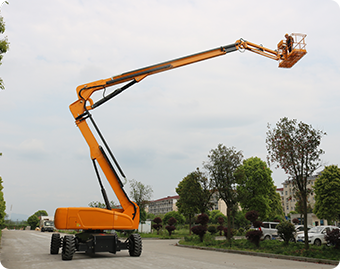

1.Functions Of Positioning Upward&outward And Crossing：The articulating boom machine offers muti-faceted functions of positioning upward, outward and crossing, so that you can reach whatever place you want to go through various ways.

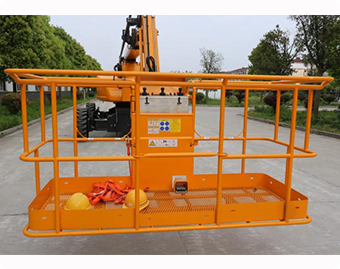

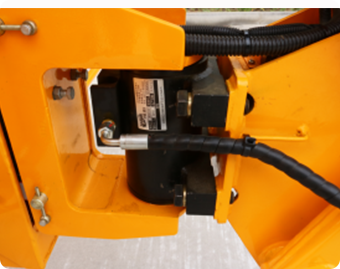

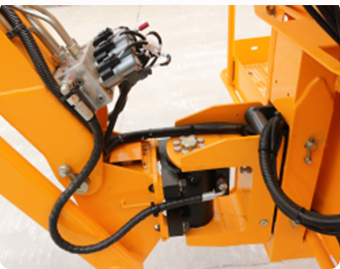

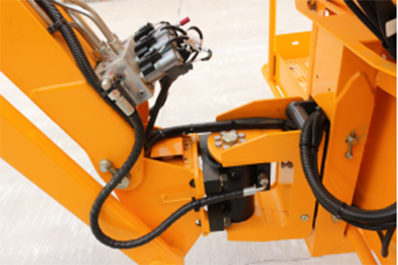

2.Rotary Platform：The rotary actuator with standard configuration can make the rotation range of the platform reach ±80°，which makes your work more flexible.

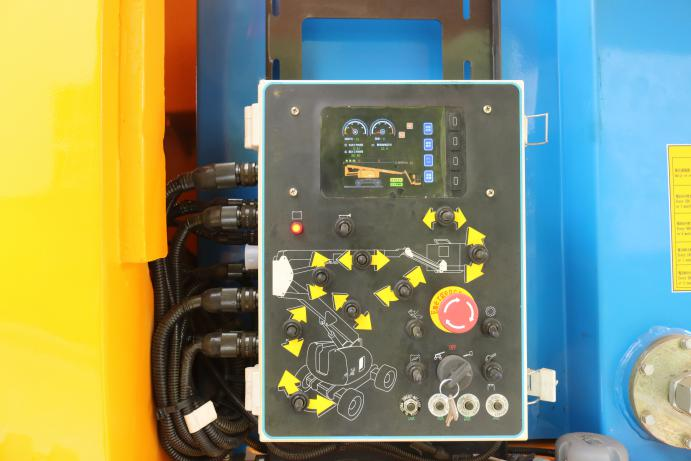

3.Control Box：Full proportion joysticks and CAN bus as well as PLC control system With high positioning accuracy are easy to be controlled and can be operated by the users at will.
The stainless steel control box with sealing cover and box cap, which can help prevent the electrical components for moisture and prevent the damage from welding slag.

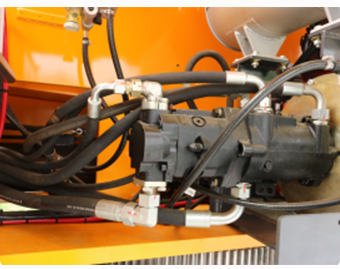

4.Traveling System：The closed circuit hydraulic traveling system consisting of electron proportional variable pump, hydraulic control variable motor and flow distribution value can gain relatively high drive speed and relatively.
5.Hydraulic System：Closed circuit hydraulic travelling system has speed easily to be adjusted, wide speed range; the boom's hydraulic system adopts double value core circuit. which enhance the safety. The hydraulic components adopt .
European and North American pure brands.
6.Driving Mode 4*2/4*4(optional)：The four-wheel drive is powerful with great grade-ability.

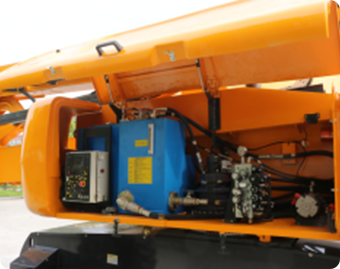

7.Swing-out Engine Tray：It is easy for maintenance and repair.

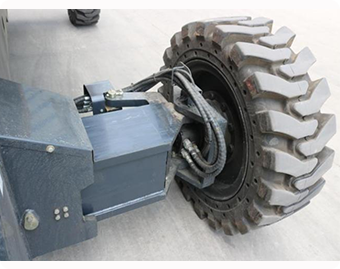

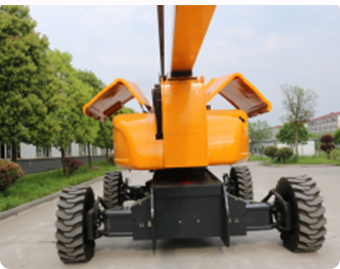

8.Active Oscillation Axle：Active oscillation axle can perceive the terrain, and can guarantee that the machine can land on four wheels even on uneven road without reducing the driving for ce.

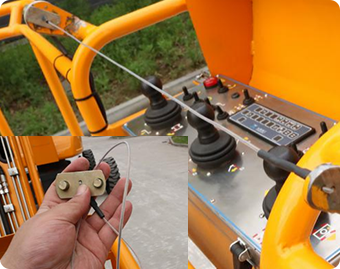

9. Interlocking Wire：Anti-misoperation rope.
10.Components Of European&American Brand：The key components such as battery, traveling electric motor, controller and the gear reducer shall adopt pure European&American brand.
11.Manually-operated Emergency Descend Device：The manually-operated pump in the system can be used to descend emergent.

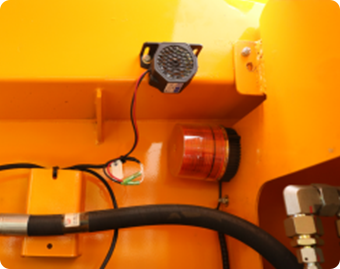

12.Strobe Light :Give alerting signal when working.
13.Electrical System:The operating button should be visual and easy-to-understand. Protection class should up to IP65.
