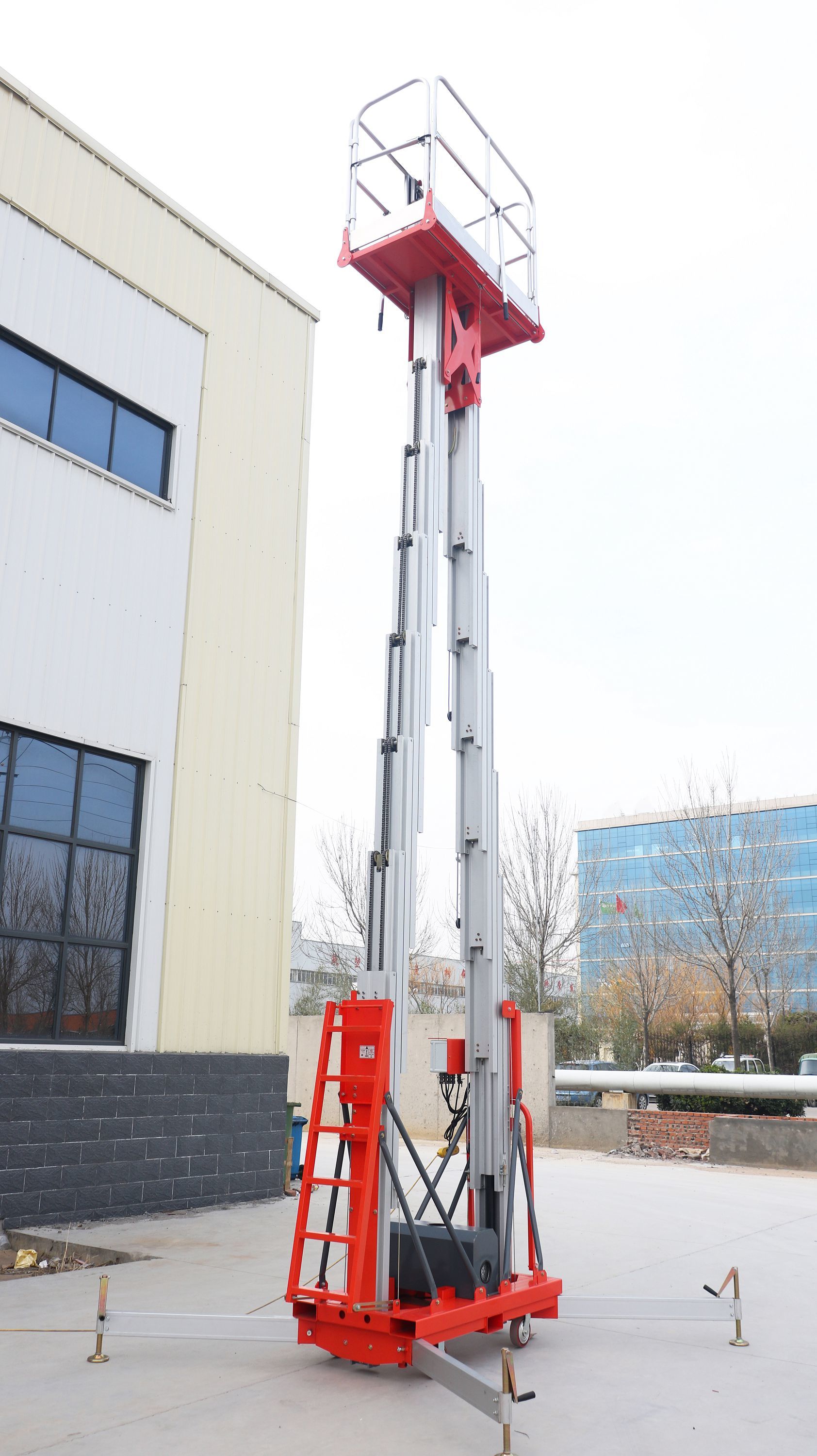

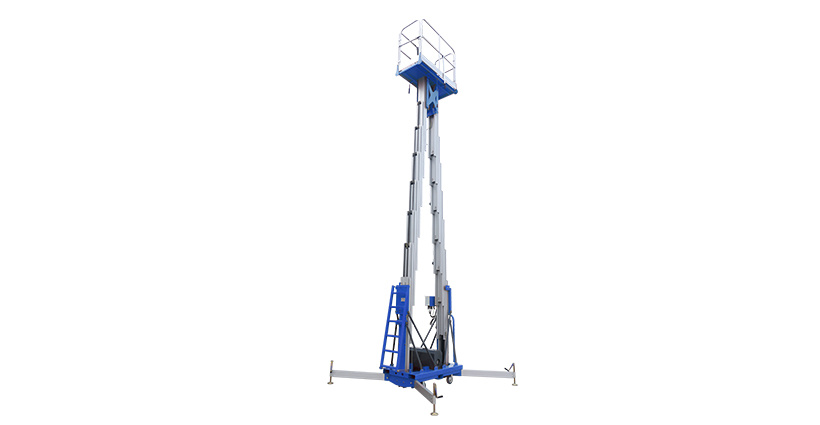

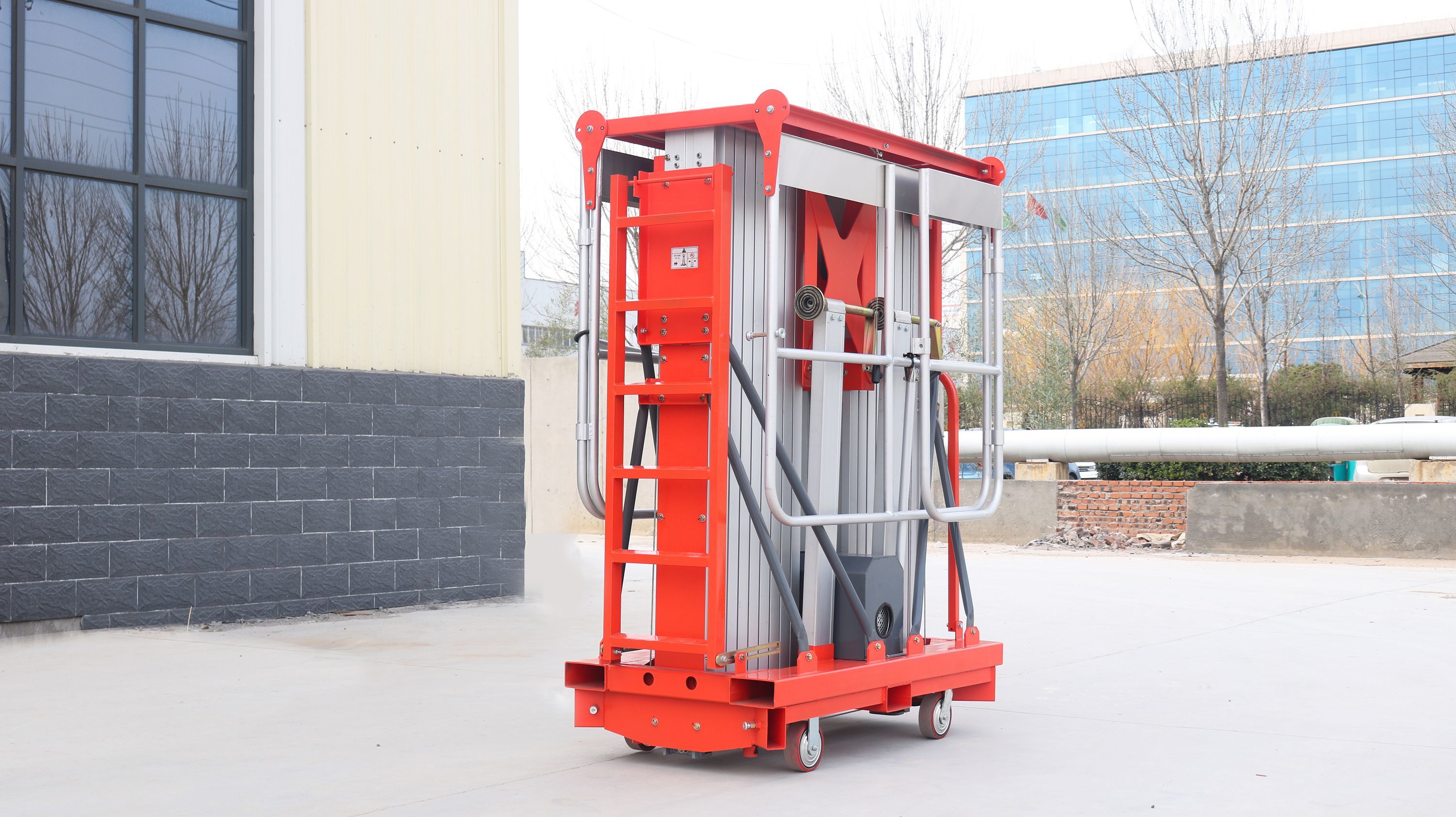

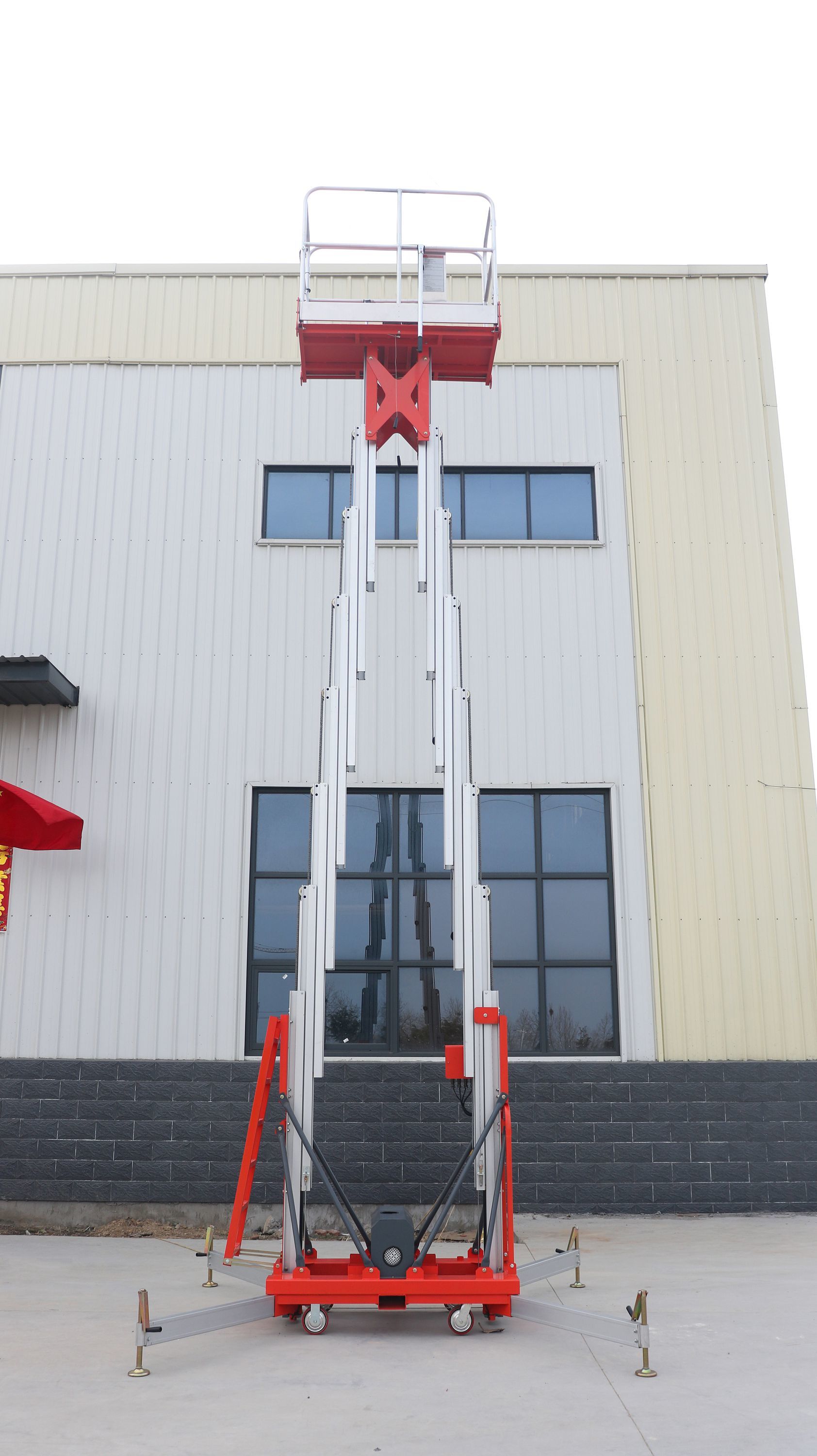

Double Mast Lift

Aluminum Lift is made in aluminum profile and equipped with the universal wheels, beautiful structure, compact main body, light weighted, safe and reliable; the control panels are available on the lift platforms and ground.

Inquiry Now

Product Description

Describe

Product Model

MODEL	PLATFORM HEIGHT	LOAD	PLATFORM SIZE	WEIGHT(AC)	WEIGHT(DC)	DIMENSIONS
XSAL0.2-6	6 m	250 kg	1,450*700 mm	610 kg	660 kg	1,4508101,990 mm
XSAL0.2-8	8 m	250 kg	1,450*700 mm	645 kg	695 kg	1,4508101,990 mm
XSAL0.2-10	10.4 m	250 kg	1,450*700 mm	715 kg	765 kg	1,4508101,990 mm
XSAL0.2-12	12 m	200 kg	1,450*700 mm	750 kg	800 kg	1,4508101,990 mm
XSAL0.2-14	14 m	200 kg	1,800*700 mm	892 kg	942 kg	1,8808102,680 mm
XSAL0.2-16	16 m	150 kg	1,800*700 mm	996 kg	1,046 kg	1,8808102,680 mm

Details

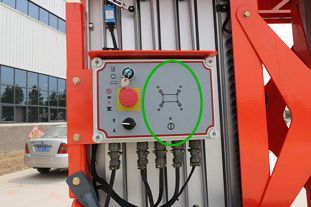

1.SAFETY INTERLOCK：Interlock outrigger indicator, ensure safety.The lift could not lift up before the four outrigger are well fixed.Lights on the panel will turn to green from red, if the outriggers are ready fixed.
2.EXPLOSION-PROOF CYLINDER DEVICE：Prevent the tubing from suddenly exploding due to unexpected conditions and causing personal injury.
3.PROFESSIONAL CONTROL SYSTEM：Emergency stop button.Error protected button design, to ensure safety.Professional security socket for power tools.

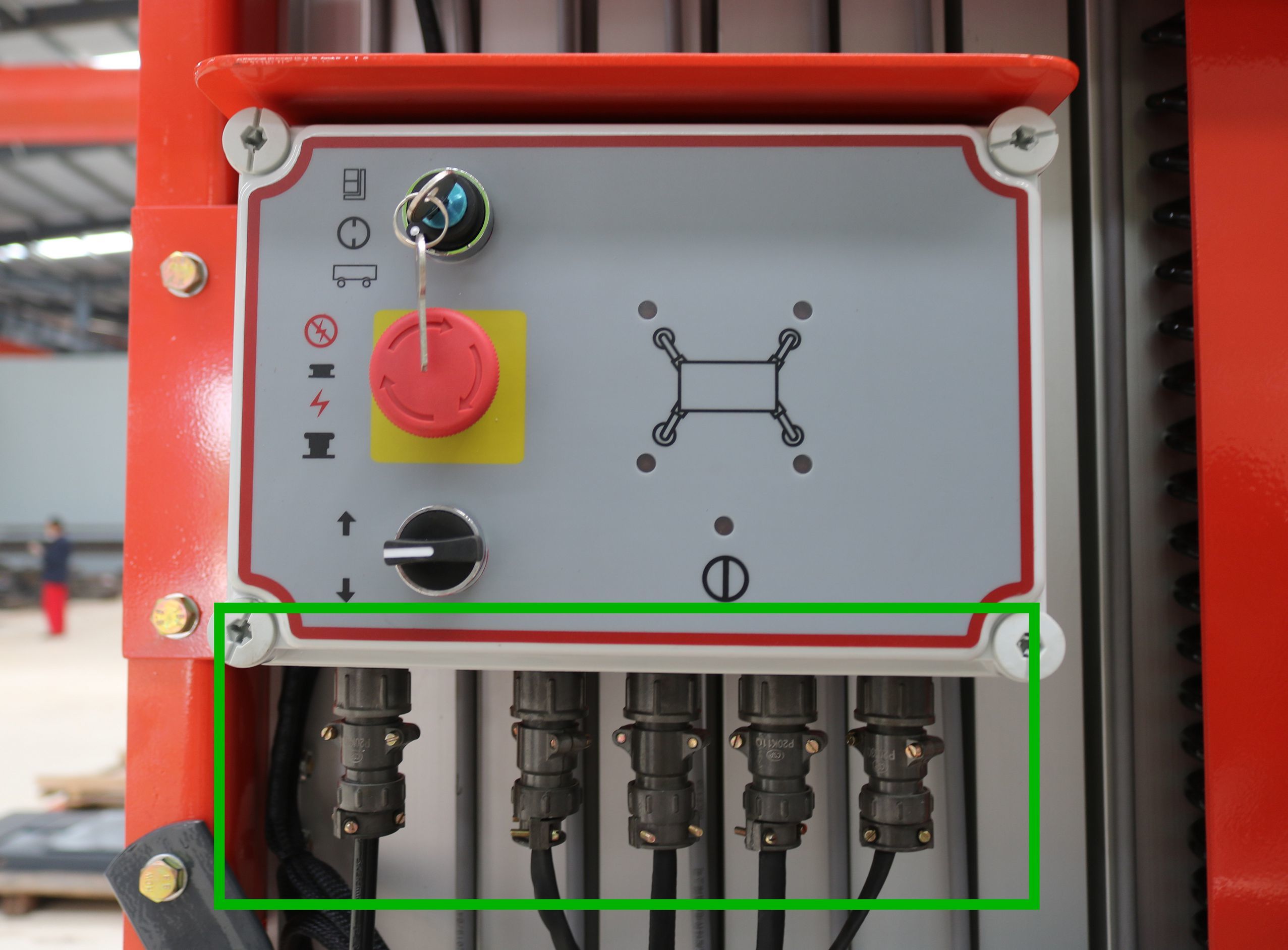

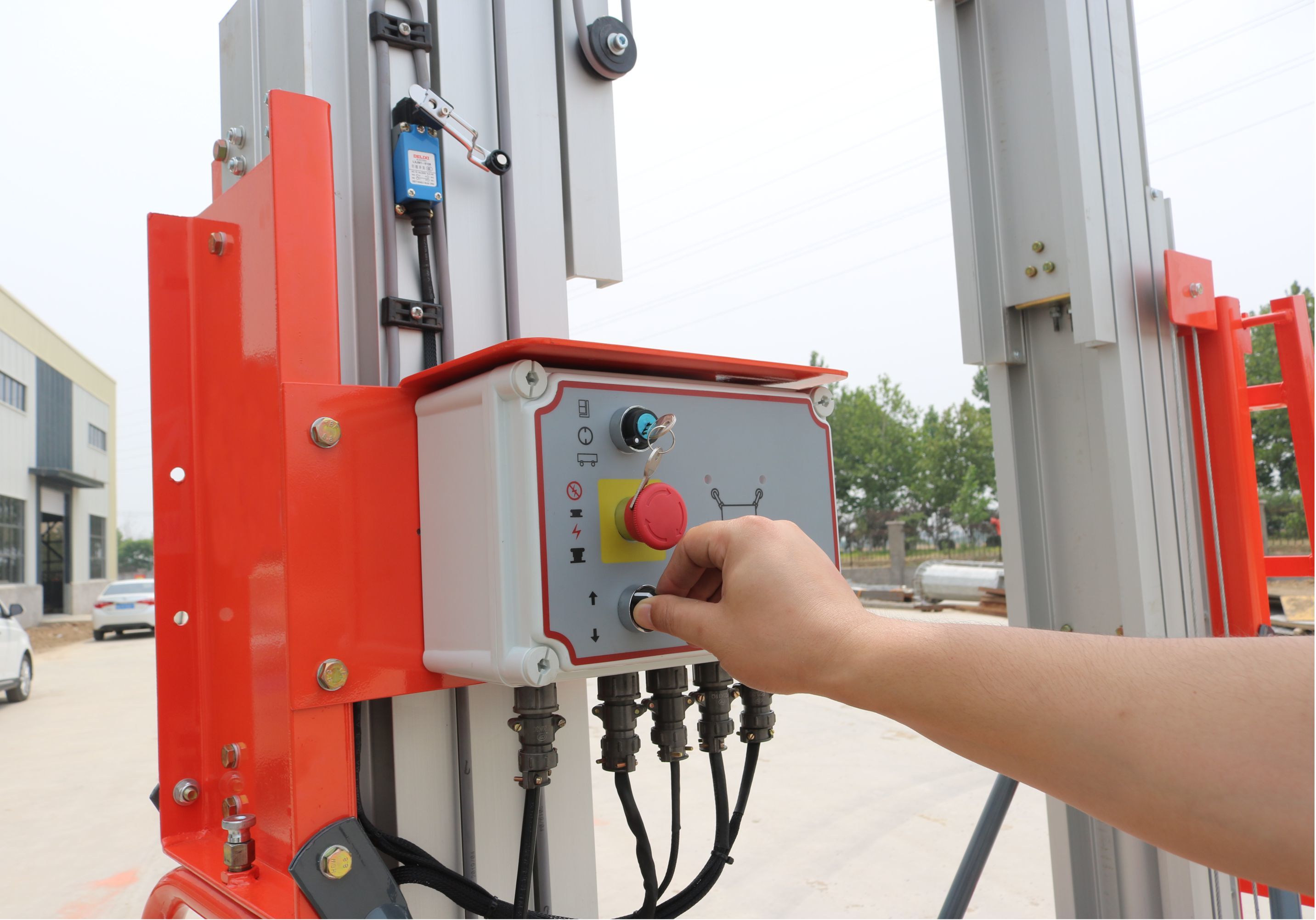

4.CONTROL BOX GROUND OPERATE：It is easy to operate when we stand on the ground.Emergency stop button: All actions of the device can be stopped in an emergency.

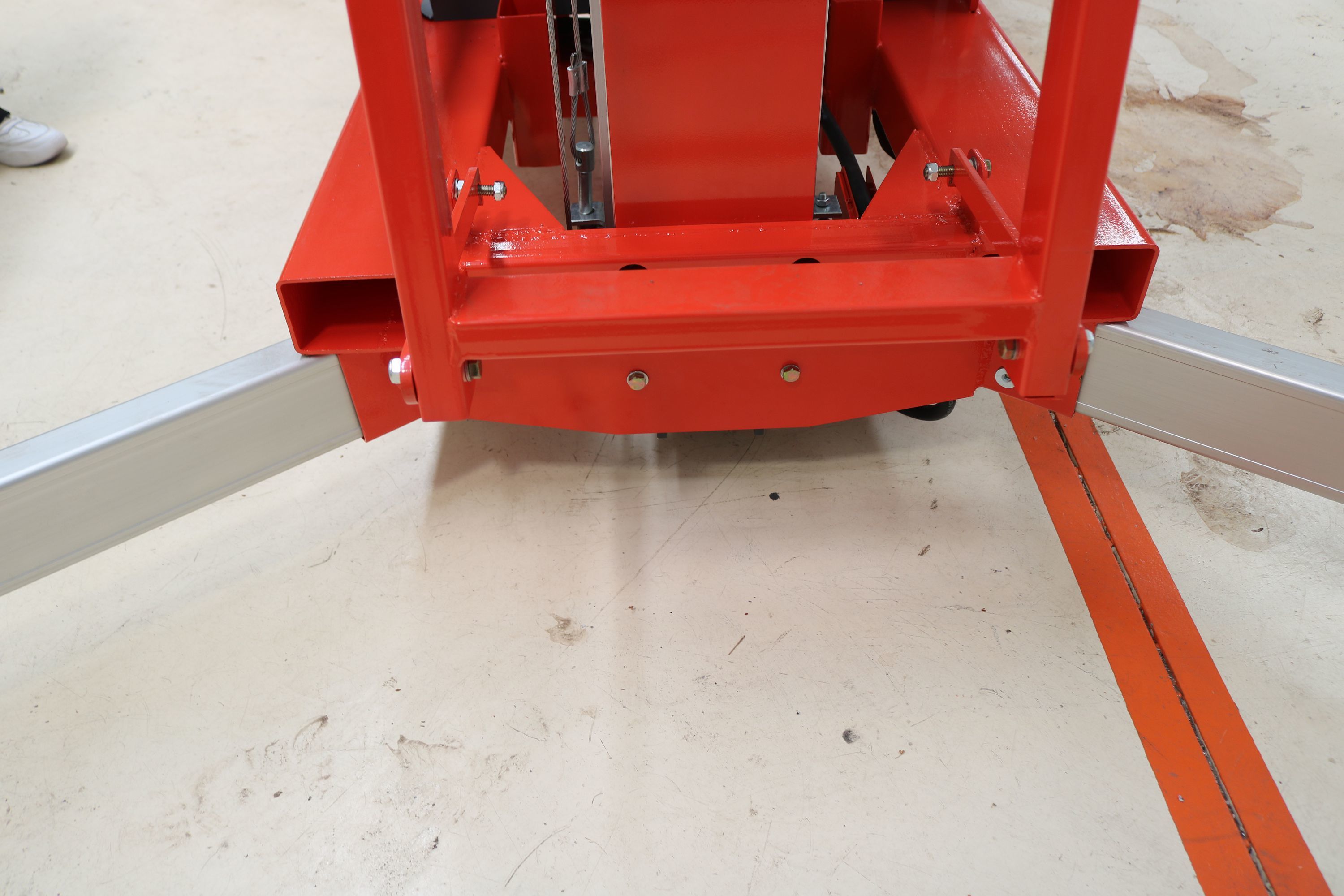

5.FORKLIFT HOLE：Ready-made forklift hole, convenience to loading and unloading.
6.EMERGENCY DESCENT BUTTON：Ensure that the device can be manually lowered in case of something out of control, to ensure safety of operator.

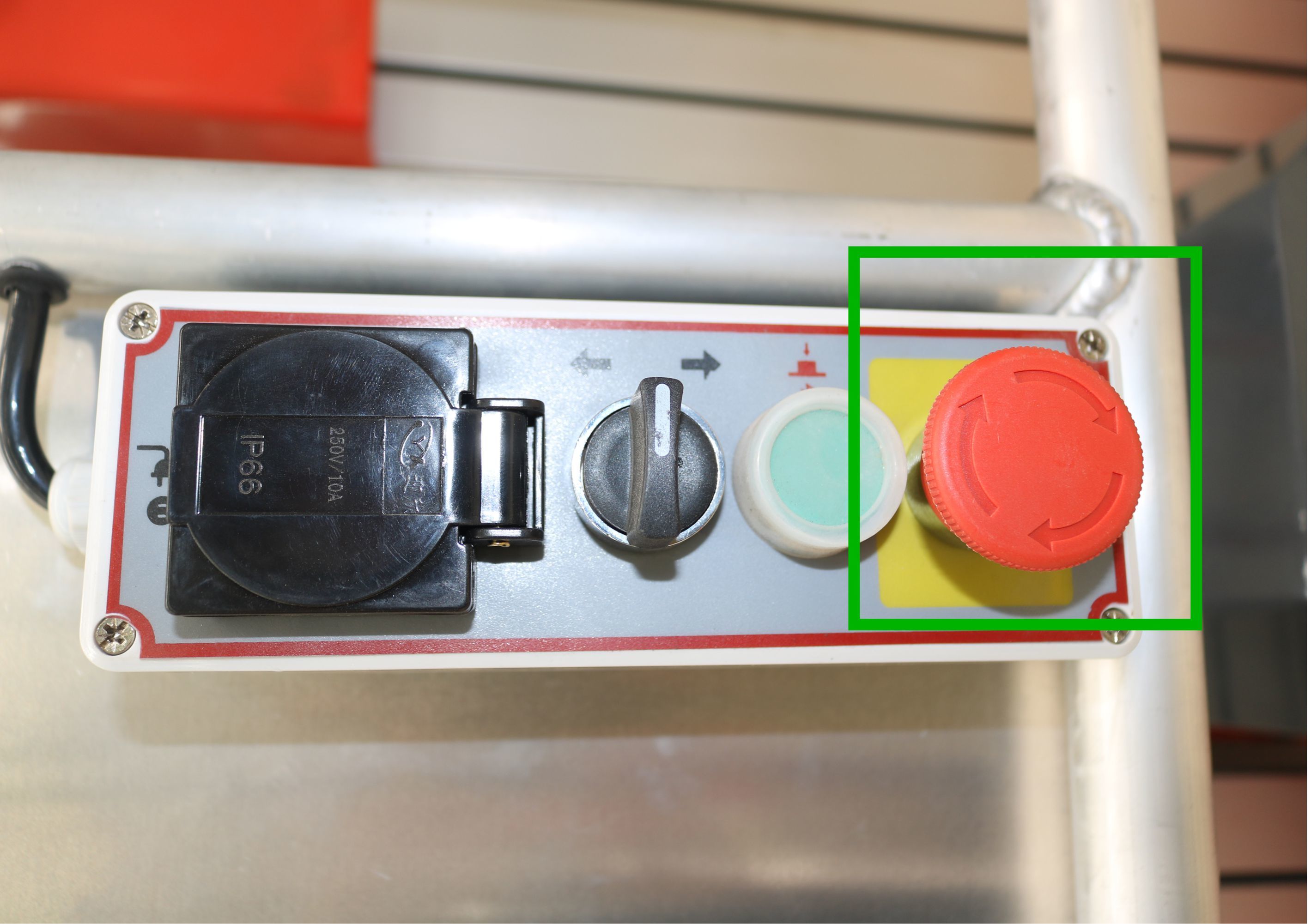

7.EMERGENCY STOP BUTTON：Emergency stop button on the controller of platform.

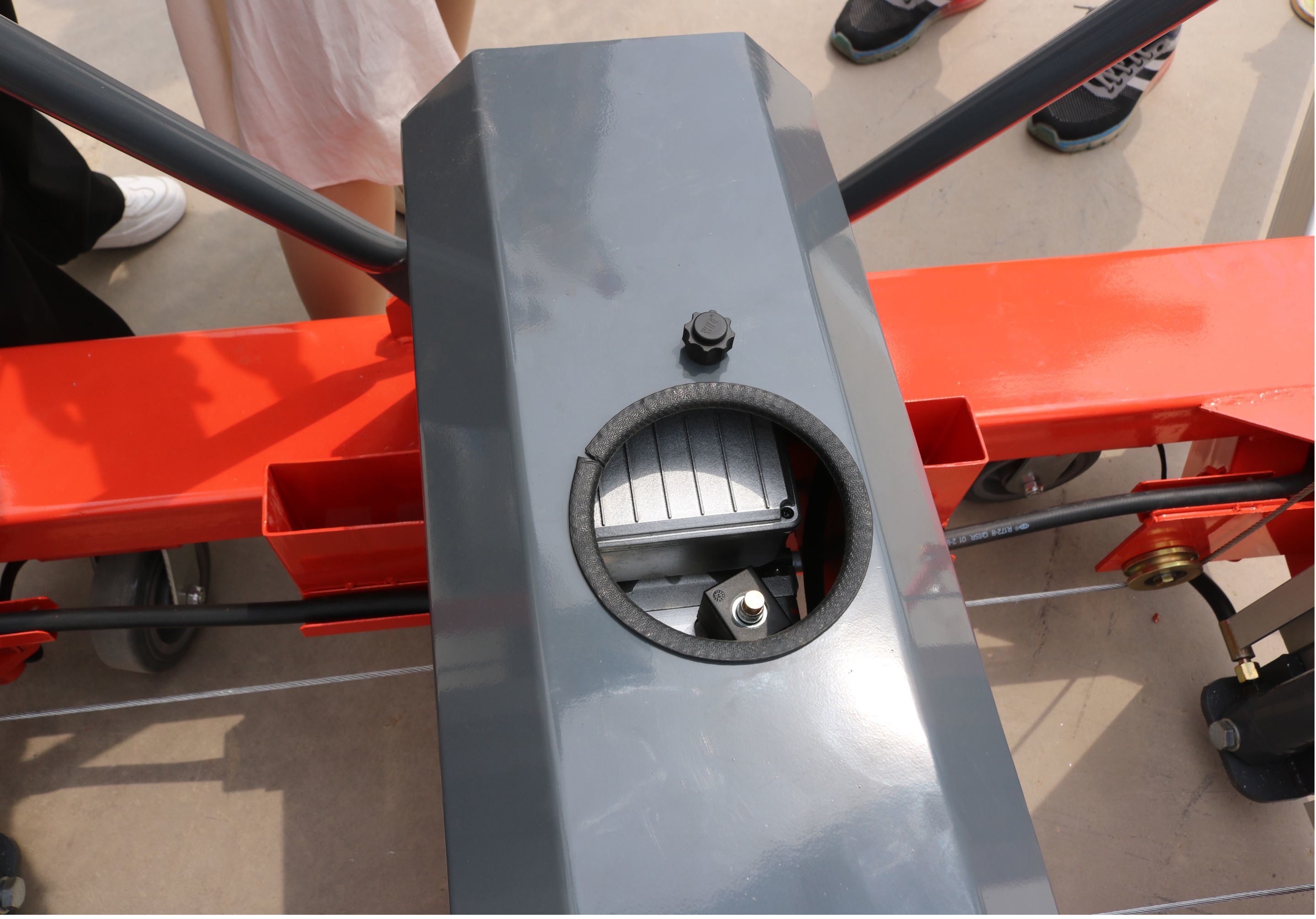

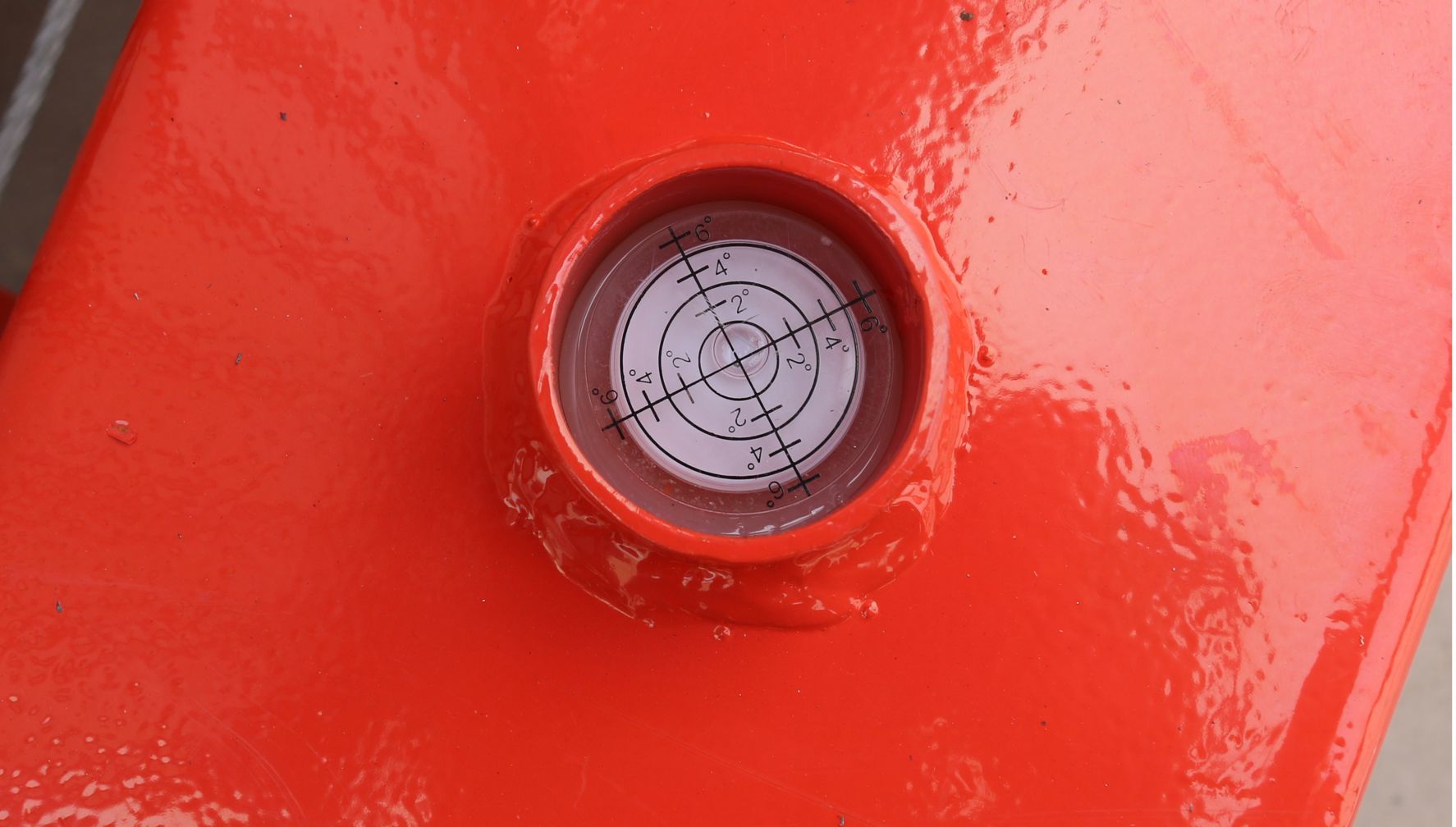

8.LEVELING BUBBLE：The bubble in the middle indicates that means the device is horizontal, or it will be dangerous to lifting up.Very helpful to ensure safety.

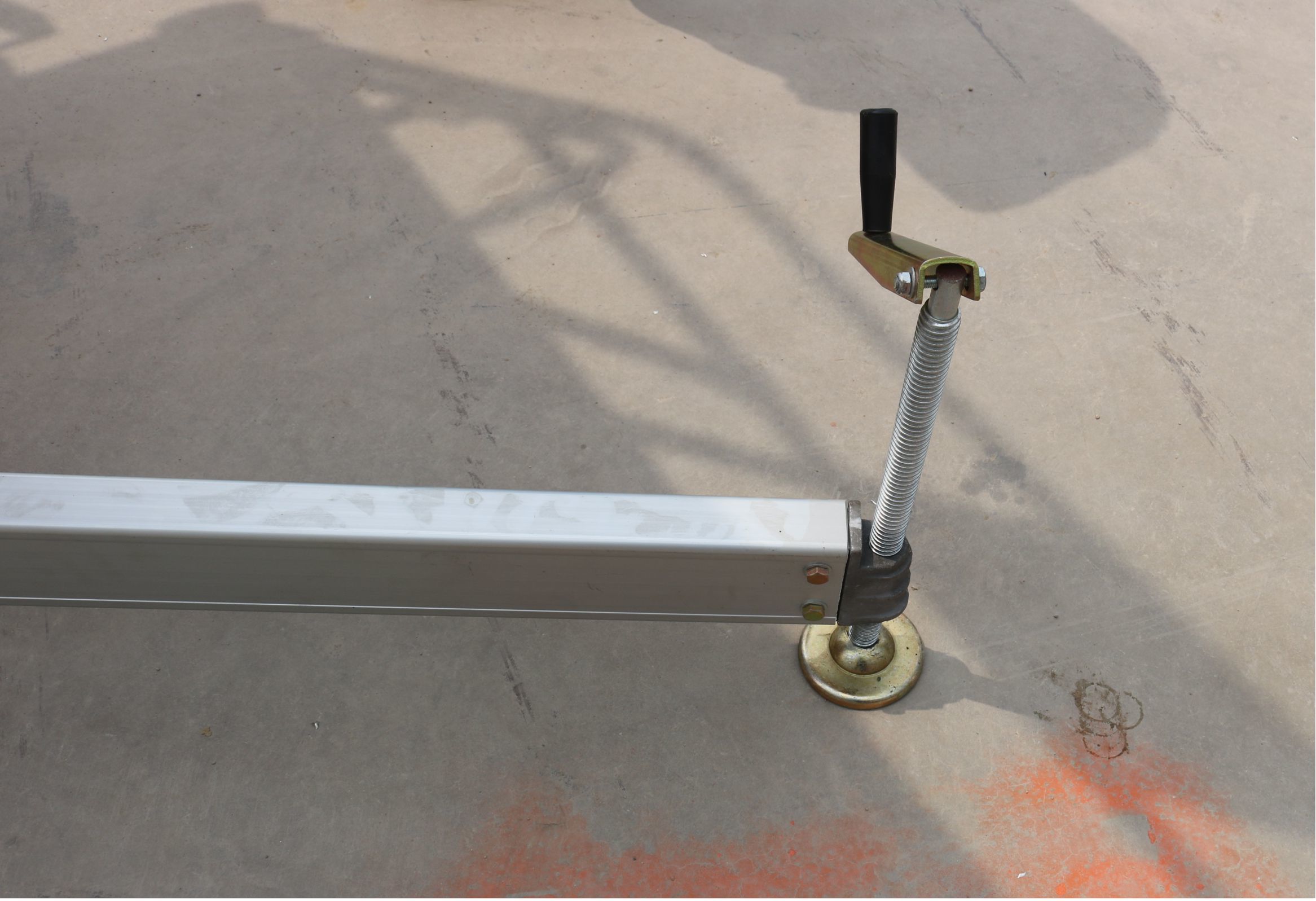

9.ALUMINIUM ALLOY OUTRIGGERS：Strong, not heavy, rust protection and easy to install.
